Grease separator EasyClean free

Basic, NS 2, Direct, left

KESSEL Grease separator EasyClean free, disposal Direct, nominal size 2, free-standing installation, type of disposal manual, locking Quick-release closure, flow direction left, no, no

  • Odour-reduced disposal with the tank closed
  • Low-maintenance operation
Item no. 94002.10DL
GTIN 4026092084014
Price group 60

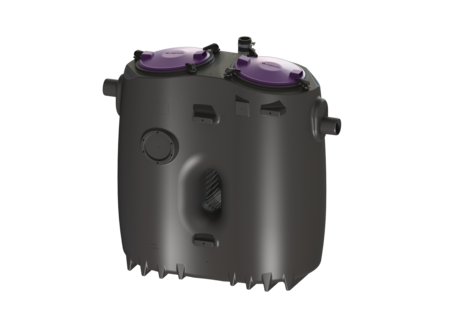

    Grease separator EasyClean free Basic, NS 2, Direct, left
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. Two odour-tight covers with quick-release closures allow for easy access for cleaning and maintenance work. There is a direct disposal pipe socket available for odour-reduced manual disposal. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. 20 year polyethylene warranty. Variant Direction of flow: left Disposal variant: Direct Sludge bucket: no Nominal size (NS): 2 Refill inlet in accordance with DIN 1988: no Type of disposal: manual Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 83 kg Gross weight: 100 kg Set-up area, length: 1560 mm Set-up area, width: 815 mm Set-up area, height: 1420 mm Required access area, length: 1560 mm Required access area, width: 700 mm Required access area, height: 1420 mm Packaging dimension: length: 1900 mm Packaging dimension: width: 1050 mm Packaging dimension: height: 1554 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Max. grease layer thickness: 120 mm Total volume: 660 l Contents of sludge trap: 200 l Storage quantity of grease: 80 l
      Title Item no.
      Title Item no.
      Title Item no.
    Inspection window for EasyClean grease separator 913109 Show
    distribution box DN 100 inlet, DN 100 drains 915700-100 Show
    Refill inlet for separators, polymer 915800 Show
    Sampling system DN 100/150, Vertical outlet 915870 Show
    Sampling system DN 100/150, Horizontal outlet 915871 Show
    Automatic water refilling EasyFill, Control unit w. solenoid valve 919010 Show
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 2
    • Inlet nominal size (DN) (zulauf_nennweite_dn): 100  mm
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 100  mm
