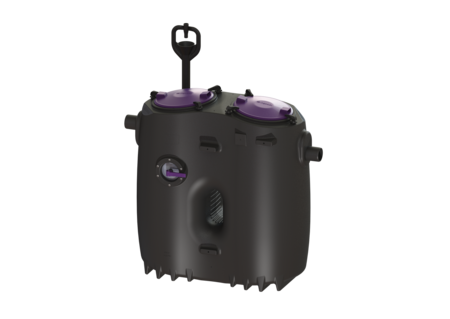

Grease separator EasyClean free

Basic, NS 2, Std, rt, Insp wind, Ref in

KESSEL Grease separator EasyClean free, disposal Standard, nominal size 2, free-standing installation, type of disposal manual with suction hose, yes, yes, flow direction right

  • Low-maintenance operation
Item no. 94002.32R
GTIN 4026092084373
Price group 60

    Grease separator EasyClean free Basic, NS 2, Std, rt, Insp wind, Ref in
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. Two odour-tight covers with quick-release closures allow for easy access for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Direction of flow: right Disposal variant: Standard Sludge bucket: yes Nominal size (NS): 2 Refill inlet in accordance with DIN 1988: yes Type of disposal: manual with suction hose Sampling device: no Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 80 kg Gross weight: 105 kg Set-up area, length: 1560 mm Set-up area, width: 850 mm Set-up area, height: 1800 mm Required access area, length: 1560 mm Required access area, width: 745 mm Required access area, height: 1420 mm Packaging dimension: length: 1900 mm Packaging dimension: width: 1050 mm Packaging dimension: height: 1554 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Max. grease layer thickness: 120 mm Total volume: 660 l Contents of sludge trap: 200 l Storage quantity of grease: 80 l
      Title Item no.
      Title Item no.
      Title Item no.
    distribution box DN 100 inlet, DN 100 drains 915700-100 Show
    Sampling system DN 100/150, Vertical outlet 915870 Show
    Automatic water refilling EasyFill, Control unit w. solenoid valve 919010 Show
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 2
    • Inlet nominal size (DN) (zulauf_nennweite_dn): 100  mm
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 100  mm
