EasyStarch free starch separator

NS 3, Standard

PDF product data sheet

KESSEL EasyStarch free starch separator, nominal size 3,00, Cover Polymer, type of disposal manual with suction hose, free-standing installation, tightness odour-tight, locking Quick-release closure

Item no. 94203.01
Price group 60

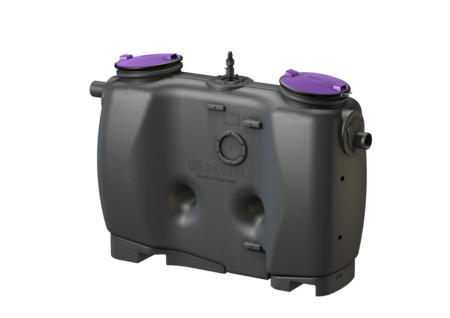

    EasyStarch free starch separator NS 3, Standard
    The separator for starchy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal takes place with the tank open. 20 year polyethylene warranty. Variant Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: yes Nominal size (NS): 3,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): F3 General characteristics Installation situation: free-standing installation Dimensions Net weight: 186 kg Gross weight: 191 kg Set-up area, length: 2820 mm Set-up area, width: 940 mm Set-up area, height: 1655 mm Required access area, length: 2590 mm Required access area, width: 940 mm Required access area, height: 1655 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Total volume: 1900 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Polymer
    • Nominal size (NS) (nenngroesse): 3
    • (nennweite):
    • Installation situation (einbausituation): free-standing installation
