Grease separator EasyClean ground
Multi, NS 7, Direct, 550-960 mm, B, rh
KESSEL Grease separator EasyClean ground, disposal Direct, nominal size 7,00, load class B 125, installation depth 550 - 960 mm, type of disposal manual with suction hose, flow direction right, Twin walled re-enforced pipe chamber, alarm generator with Level sensor
- Low odour and clean disposal
- Defined disposal point
- Complete emptying of the separator
| Item no. | 96007.80B-DR |
|---|---|
| GTIN | 4026092098356 |
| Price group | 60 |
Grease separator EasyClean ground Multi, NS 7, Direct, 550-960 mm, B, rh

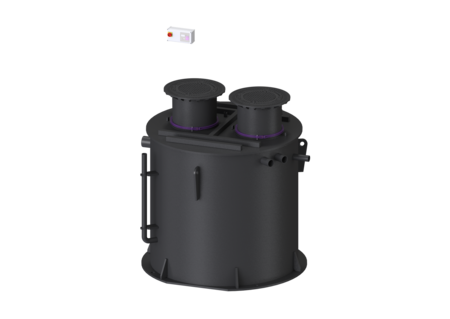

The unit for an underground installation combines a separator for greasy wastewater incl. sludge trap, a sampling system and a pumping station. The tank of all system parts is made of permanently resistant polymer (PE). The individual system parts can be accessed for cleaning and maintenance work via two service access covers. A direct disposal pipe socket is available for reduced odour during manual disposal. The pumping station is equipped with two submersible pumps and a backflow preventer. The submersible pumps are placed in the tank using guide rods. The pumps are actuated via a level sensor. The station is controlled by a user-friendly control unit, which can be connected to the building control system via a potential-free contact. Alternatively, alarm and collective fault messages can be sent by way of a GSM interface. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Direction of flow: right Chamber system: Twin walled re-enforced pipe chamber Disposal variant: Direct Shredder-Mix-System: no Nominal size (NS): 7,00 SonicControl: no Disposal system: Disposal connection Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E2 Dimensions Net weight: 1140 kg Gross weight: 1194 kg Groundwater resistant from lower edge of base section: 2560 mm Installation depth: 550 - 960 mm Length: 2160 mm Width: 2505 mm Packaging dimension: length: 3400 mm Packaging dimension: width: 2250 mm Packaging dimension: height: 2310 mm Tank/drain body Pressure pipe connection (DN): 90 Pressure pipe connection (OD): 90 mm Distance pipe bottom outlet to tank bottom: 1330 mm Distance pipe bottom inlet to tank bottom: 1600 mm Outlet nominal size (OD): 160 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 1440 l Max. grease layer thickness: 195 mm Total volume: 2140 l Contents of sludge trap: 700 l Storage quantity of grease: 280 l Pumping device Pump: GTK 1300 Number of pumps: 2 Weight, pump: 27 kg Rated current: 2,5 A Protection class: I Insulation class: H Cos phi - power factor: 0,8 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 57 m³/h Max. pumping height: 12,4 m Speed: 2900 U/min Power P1: 1,3 kW Power P2: 1 kW Operating mode: S3 - 30 % Type of fuse required (electrical protection): 3 x C 16 A Type of pump connection cable: H07RN8-F 6G 1.5 mm² Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Seal Rolling ring, DN 125 | 680002 | Show |
 | Battery 9 V block | 680034 | Show |
 | Flap set Rolling ring, flap, flap holder | 680053 | Show |
 | Clamping ring for upper sections d: 600 mm | 680276 | Show |
 | Removal key for cover plates | 680278 | Show |
 | Seal for cover plate, locked | 680323 | Show |
 | Upper section d: 630 mm, surface water resistant | 680324 | Show |
 | Flap housing for Duo systems, with 2 shut-off valves | 680419 | Show |
 | Seal for pump claw, 2.5 inch | 680597 | Show |
 | Pump clamp 2.5 inch, with seal | 680599 | Show |
 | Level sensor with sensor clamp | 680600 | Show |
 | Protective tube for level probe, slotted | 680603 | Show |
 | Replacement pump Aquadive GTK1300 without float switch, 10 m | 680610 | Show |
 | Comfort control unit Duo, 400 V, 2x2.5-4 A | 680619 | Show |
 | Sensor clamp for level sensor & subm. press. switch | 680729 | Show |
 | Flexible coupling with clamps | 680783 | Show |
 | Seal d: 630 mm, from 01/2015 | 860104 | Show |
 | Cover plate Class B, grey cast iron, with seal | 860119 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- Disposal system (entsorgungseinrichtung):
Disposal connection
- Nominal size (NS) (nenngroesse): 7
- Load class (belastungsklasse): B 125 (EN 124)
- Installation depth (einbautiefe): 550 mm
- Direction of flow (fliessrichtung): right
