Grease separator EasyClean ground
Multi, NS 10, Standard, 720-960 mm, D

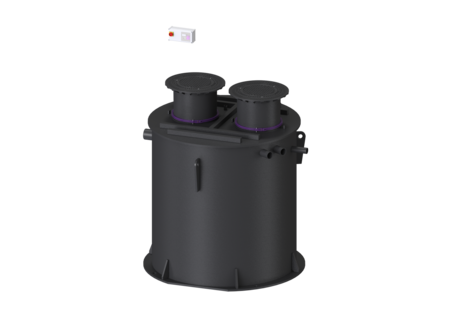

KESSEL Grease separator EasyClean ground, disposal Standard, nominal size 10,00, load class D 400, underground installation, installation depth 720 - 960 mm, type of disposal manual with suction hose, Twin walled re-enforced pipe chamber, alarm generator with Level sensor
- Vertically adjustable upper section with odour-tight cover plates in various load classes
- Waterproof, resistant to aggressive wastewater
- Low-maintenance operation
| Item no. | 96010.80D |
|---|---|
| GTIN | 4026092098301 |
| Price group | 60 |
Grease separator EasyClean ground Multi, NS 10, Standard, 720-960 mm, D
The unit for an underground installation combines a separator for greasy wastewater incl. sludge trap, a sampling system and a pumping station. The tank of all system parts is made of permanently resistant polymer (PE). The individual system parts can be accessed for cleaning and maintenance work via two service access covers. Manual disposal takes place with the tank open. The pumping station is equipped with two submersible pumps and a backflow preventer. The submersible pumps are placed in the tank using guide rods. The pumps are actuated via a level sensor. The station is controlled by a user-friendly control unit, which can be connected to the building control system via a potential-free contact. Alternatively, alarm and collective fault messages can be sent by way of a GSM interface. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Chamber system: Twin walled re-enforced pipe chamber Disposal variant: Standard Shredder-Mix-System: no Nominal size (NS): 10,00 SonicControl: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E2 General characteristics Installation situation: underground installation Dimensions Net weight: 1210 kg Gross weight: 1264 kg Groundwater resistant from lower edge of base section: 2730 mm Installation depth: 720 - 960 mm Length: 2160 mm Width: 2505 mm Packaging dimension: length: 3400 mm Packaging dimension: width: 2250 mm Packaging dimension: height: 2480 mm Tank/drain body Pressure pipe connection (DN): 90 Pressure pipe connection (OD): 90 mm Distance pipe bottom outlet to tank bottom: 1500 mm Distance pipe bottom inlet to tank bottom: 1770 mm Outlet nominal size (OD): 160 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Locking: unlocked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 1400 l Max. grease layer thickness: 270 mm Total volume: 2400 l Contents of sludge trap: 1000 l Storage quantity of grease: 400 l Pumping device Pump: GTK 1300 Number of pumps: 2 Weight, pump: 27 kg Rated current: 2,5 A Protection class: I Insulation class: H Cos phi - power factor: 0,8 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 57 m³/h Max. pumping height: 12,4 m Speed: 2900 U/min Power P1: 1,3 kW Power P2: 1 kW Operating mode: S3 - 30 % Type of fuse required (electrical protection): 3 x C 16 A Type of pump connection cable: H07RN8-F 6G 1.5 mm² Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Connect Pro module LTE f. control unit w. Connect Pro interface | 72300 | Show |
 | Direct disposal Disposal connection, right | 917419.00 | Show |
 | Direct disposal Disposal connection, left | 917419.50 | Show |
 | Disposal chamber LW 400, underground separators, A/B | 917422B | Show |
 | Disposal chamber LW 400, underground separators, D | 917422D | Show |
 | Layer thickness measuring device SonicControl, for grease separators | 917821 | Show |
 | SonicControl cable gland Underground separator installation set | 917823 | Show |
 | Cable extension 10 m, for SonicControl grease separator | 917871 | Show |
| Cable extension 20 m, for SonicControl grease separator | 917872 | Show |
| Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Seal Rolling ring, DN 125 | 680002 | Show |
 | Battery 9 V block | 680034 | Show |
 | Flap set Rolling ring, flap, flap holder | 680053 | Show |
 | Clamping ring for upper sections d: 600 mm | 680276 | Show |
 | Removal key for cover plates | 680278 | Show |
 | Seal for cover plate, locked | 680323 | Show |
 | Upper section d: 630 mm, surface water resistant | 680324 | Show |
 | Flap housing for Duo systems, with 2 shut-off valves | 680419 | Show |
 | Seal for pump claw, 2.5 inch | 680597 | Show |
 | Pump clamp 2.5 inch, with seal | 680599 | Show |
 | Level sensor with sensor clamp | 680600 | Show |
 | Protective tube for level probe, slotted | 680603 | Show |
 | Replacement pump Aquadive GTK1300 without float switch, 10 m | 680610 | Show |
 | Comfort control unit Duo, 400 V, 2x2.5-4 A | 680619 | Show |
 | Sensor clamp for level sensor & subm. press. switch | 680729 | Show |
 | Flexible coupling with clamps | 680783 | Show |
 | Seal d: 630 mm, from 01/2015 | 860104 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort
- Installation situation (einbausituation):
underground installation
- Nominal size (NS) (nenngroesse): 10
- Load class (belastungsklasse): D 400 (EN 124)
- Installation depth (einbautiefe): 720 mm
- (fliessrichtung):
