Coalescence separ. EasyOil System

NS 1.5, class I, free st., pump chamber

99815RP
99815RP
PDF product data sheet

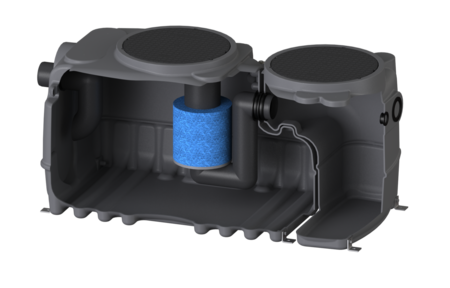

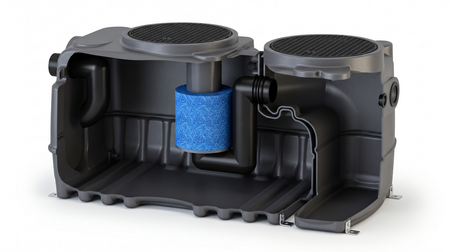

KESSEL Coalescence separ. EasyOil System, nominal size 1,5, separator class I, free-standing installation, sludge trap capacity 150 l, total volume 330 l

  • The lowest inlet and outlet nozzles in their class
  • A one-piece tank that ensures long-term tightness
  • Low weight and compact design for easy transport and installation
Item no. 99815RP
GTIN 4026092113615

    Coalescence separ. EasyOil System NS 1.5, class I, free st., pump chamber
    Light liquid separator for free-standing installation in frost-free rooms, e.g. in concrete chambers or technical rooms. The monolithic tank (without joints between the walls) is made of PE polymer, which is resistant to aggressive wastewater, and has an integrated sedimentation tank and an automatic device that closes the drain if the separator overfills. Wide covers allow easy access for cleaning or maintenance work. The separator is factory-connected to a monolithic tank designed for pressurised installations. The tank can be equipped with various factory-installed pressurisation options. Factory retrofitting with sensors is possible on request. The tanks are prepared at the factory for anchoring to the floor using the elements supplied or for fixing to the top of the tank using steel profiles. The guarantee on the PE material is 20 years. Variant Nominal size (NS): 1,5 General characteristics Material: PE Standard: EN 858 Installation situation: free-standing installation Separator class: I Dimensions Net weight: 45,5 kg Gross weight: 90,5 kg Length: 1610 mm Width: 770 mm Height: 740 mm Packaging dimension: length: 1610 mm Packaging dimension: width: 770 mm Packaging dimension: height: 740 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 515 mm Distance pipe bottom inlet to tank bottom: 470 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 110 Inlet nominal size (DN): 110 Coverage features Colour of cover: black Wastewater contents Total volume: 330 l Contents of sludge trap: 150 l Storage quantity of light liquid: 60 l
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Installation situation (einbausituation): free-standing installation
    • Material (material): PE
