Coalescence separator EasyOil
NS 3, class I, without sludge trap
KESSEL Coalescence separator EasyOil, nominal size 3,00, separator class I, free-standing installation, sludge trap capacity l, total volume 415 l
- Permanent leak tightness up to op edge of the container
- Resistant to and suitable for up to 100 % share of biodiesel
- Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
| Item no. | 99830 |
|---|---|
| GTIN | 4026092097458 |
Coalescence separator EasyOil NS 3, class I, without sludge trap

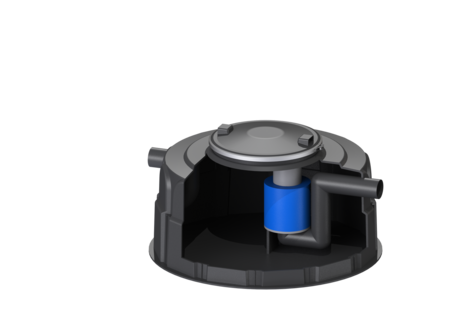

The light liquid separator is suitable for free-standing installation in frost-protected rooms and is equipped with a removable coalescence insert. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap (optional) and an automatic closure device. The odour-tight cover enables easy access for cleaning and maintenance work. An inlet and outlet connection on site is possible with PE-HD pipes according to DIN 19537, PVC-KG pipes according to DIN 19534 and PP or AS on pipe spigots (PE) fitted at the factory. The applicable standards must be observed when selecting the appropriate seals and pipe materials. 20-year polyethylene warranty. Variant Nominal size (NS): 3,00 General characteristics Material: PE Standard: EN 858 Installation situation: free-standing installation Separator class: I Dimensions Length: 1360 mm Width: 1300 mm Height: 750 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 390 mm Distance pipe bottom inlet to tank bottom: 410 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 110 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 110 mm Coverage features Colour of cover: black Wastewater contents Total volume: 415 l Storage quantity of light liquid: 78 l
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Material (material):
PE
- Installation situation (einbausituation):
free-standing installation
