Coalescence separ. EasyOil System

NS 3, class I, free-standing

99830R
99830R
PDF product data sheet

KESSEL Coalescence separ. EasyOil System, nominal size 3, separator class I, free-standing installation, sludge trap capacity 300 l, total volume 490 l

  • The lowest inlet and outlet nozzles in their class
  • A one-piece tank that ensures long-term tightness
  • Low weight and compact design for easy transport and installation
Item no. 99830R
GTIN 4026092113622

    Coalescence separ. EasyOil System NS 3, class I, free-standing

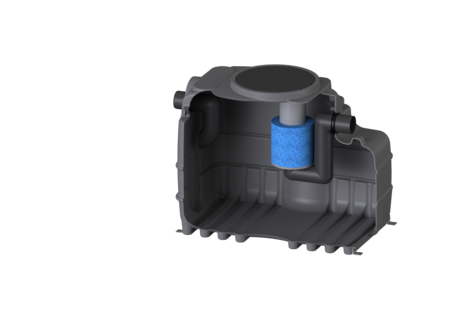

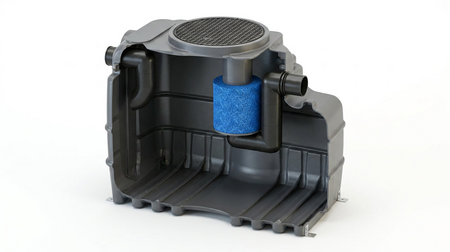

    Light liquid separator for freestanding installation in frost-free rooms, e.g. in concrete chambers or plant rooms. The monolithic tank (with no joints between the walls) is made of PE plastic, which is resistant to aggressive waste water, and features an integrated settling tank as well as an automatic device that closes the outlet if the separator becomes overfilled. The wide lid allows easy access for cleaning or maintenance work. Factory retrofitting with sensors is available on request. The tank is factory-prepared for anchoring to the floor using the supplied components or for securing with a steel profile on the top of the tank. The warranty on the PE material is 20 years. Variant Nominal size (NS): 3 General characteristics Material: PE Standard: EN 858 Installation situation: free-standing installation Separator class: I Dimensions Net weight: 46 kg Gross weight: 53 kg Length: 1290 mm Width: 770 mm Height: 940 mm Packaging dimension: length: 1290 mm Packaging dimension: width: 770 mm Packaging dimension: height: 940 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 650 mm Distance pipe bottom inlet to tank bottom: 670 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 110 Inlet nominal size (DN): 110 Coverage features Colour of cover: black Wastewater contents Total volume: 490 l Contents of sludge trap: 300 l Storage quantity of light liquid: 70 l
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Installation situation (einbausituation): free-standing installation
    • Material (material): PE
