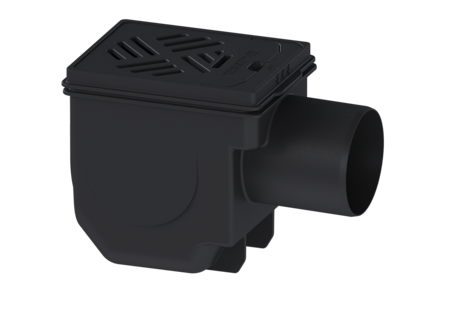

Drehfix basement drain

DN 100, Black grating, Type 5

The basement drain for faecal-free wastewater is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand.

  • Integrated backwater protection
  • Simple
  • toolless maintenance and cleaning
Item no. 27301
GTIN 4026092007815
Price group 10

Drehfix basement drain DN 100, Black grating, Type 5
The basement drain for faecal-free wastewater is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Contents of sludge trap: yes Emergency closure: yes Discharge rate (l/s) with 20 mm backwater: 1,8 Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: installation-ready Backwater protection: Type 5 Dimensions Net weight: 1,49 kg Gross weight: 1,51 kg Cutout dimension, width: 190 mm Cutout dimension, length: 320 mm Installation depth: 210 - 240 mm Vertical adjustment: vertically adjustable upper section Width: 168 mm Length: 285 mm Packaging dimension: width: 170 mm Packaging dimension: height: 205 mm Packaging dimension: length: 280 mm Coverage features Type of cover: Slotted cover Colour of cover: black Load class: K 3 (EN 1253-1) Backflow protection: Polymer Grid size, length: black Grating material: 190 mm Grid size, width: 150 mm Grid size, height: 14 mm Contents of sludge trap: yes Odour trap: included Cover Grid size, length: black Backflow protection: Polymer Grating material: 190 mm Grid size, width: 150 mm Grid size, height: 14 mm
  Title Item no.
  Title Item no.
  Title Item no.
Adapter DN 100/70 27602 Show
Anti-rat protection Insert made of stainless steel 27609 Show
Extension section H: 183 mm 38670 Show
Inlet socket DN 50, with seal, Threaded ring 39005 Show
Inlet socket DN 70, with seal, Threaded ring 39007 Show
Inlet socket DN 100, with seal, Threaded ring 39100 Show
Hole saw for DN 50/70/100 500101 Show
  Title Item no.
Slotted grid for Drehfix, 150x190mm 27205 Show
Sludge basket for Drehfix 27308 Show
Double flap backwater valve 27603 Show
Staufix test funnel with seal 70214 Show
  • Nominal size (DN) (nennweite): 100
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Backwater protection (rueckstauschutz): Type 5
  • Installation depth (einbautiefe): 210  mm
  • Odour trap (geruchsverschluss): included
