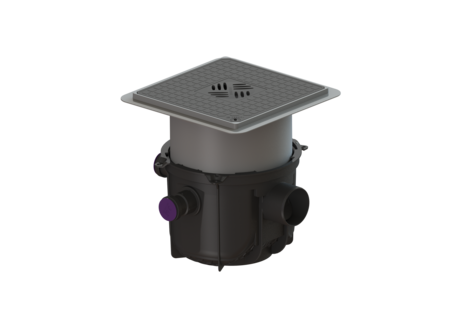

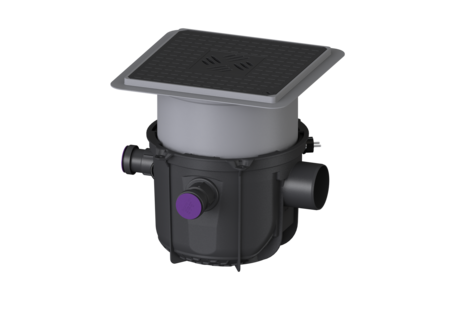

Pumpfix S backwater pump station

DN 100, with black cover plate

KESSEL Pumpfix S backwater pump station, nominal size (DN) 100, wastewater without sewage, System suitable for installation in waterproof concrete, Waterproof concrete, type of cover Cover plate, power P1 600 kW

  • Drains reliably against backwater pressure
  • Continuous running pump with multi-vane vortex impeller for maximum reliability
  • System suitable for installation in waterproof concrete
Item no. 280451S
GTIN 4026092085516
Price group 10

    Pumpfix S backwater pump station DN 100, with black cover plate

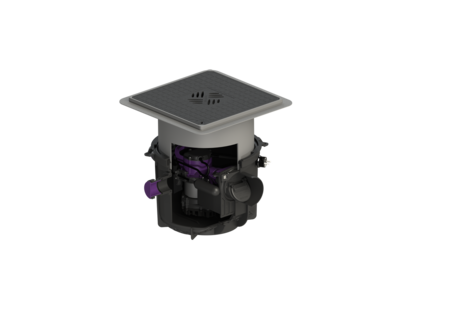

    The backwater pumping station for faecal-free wastewater is equipped with one pump and two mechanical backwater valves which close automatically in the event of backwater. Normally, draining takes place via the natural gradient to the sewer. During the backwater phase, draining takes place via the integrated pump against backwater pressure directly into the sewage channel. - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - System suitable for installation in waterproof concrete, groundwater resistant up to 3 m - Backwater protection in accordance with EN 13564 type 5 - Including socket DN 50 for inlet and cable conduit - Pump suitable for permanent operation with multi-vane impeller for maximum operational safety - Including float switch for level measurement Variant Note on installation depth: System suitable for installation in waterproof concrete Discharge rate (l/s) with 20 mm backwater: 1,6 Mechanical backwater flaps: 2 System installation: Waterproof concrete General characteristics Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Delivery state: plug-in ready Backwater protection: Type 5 ATEX: no Dimensions Net weight: 10,8 kg Gross weight: 12,1 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 600 mm Cutout dimension, length: 600 mm Installation depth: 330 - 460 mm Length: 485 mm Width: 380 mm Packaging dimension: length: 445 mm Packaging dimension: width: 445 mm Packaging dimension: height: 466 mm Tank/drain body Connection conduit pipe (DN): 50 Inlet nominal size (DN): 50 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Rim width: 380 mm Rim length: 380 mm Max. flooring height: 16 mm Shape of upper section: square Pumping device Pump: GTF 500 Number of pumps: 1 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 2,7 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 8 m Speed: 2800 U/min Power P1: 600 kW Power P2: 360 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 2,7 A Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
    Odour trap Multistop, System 125 48500 Show
    Odour trap Megastop 48550 Show
    Hair filter Polymer, for System 125 bathroom drains 48700 Show
    Odour trap for The Ultraflat 79 680696 Show
    Drain body for cover plate for odour trap 50 mm, black 680795 Show
    Drain body for cover plate for Multistop, black 680796 Show
    Drain body for cover plate for odour trap 50 mm, grey 680797 Show
    Drain body for cover plate for Multistop, grey 680798 Show
    Cover plate surface water resistant, black 366x366mm 830050 Show
    Cover plate surface water resistant, tileable 830052 Show
    Extension section deeper installation,Flange/mating flange 830073 Show
    Extension section Floor slab, for waterproof concrete 830075 Show
      Title Item no.
    Slotted cover 138x138 mm, Polymer 60101S Show
    • Nominal size (DN) (nennweite): 100
    • Cover material (abdeckung_material): Polymer
    • Type of wastewater (abwasserart_de): without sewage
    • Type of cover (abdeckungsart): Cover plate
    • Length (laenge): 485  mm
    • Width (breite): 380  mm
    • Backwater protection (rueckstauschutz): Type 5
    • Pump (pumpe): GTF 500
    • Installation depth (einbautiefe): 330  mm
