Tech kit Minilift L Underfloor

KTP 300

280570-TK
280570-TK

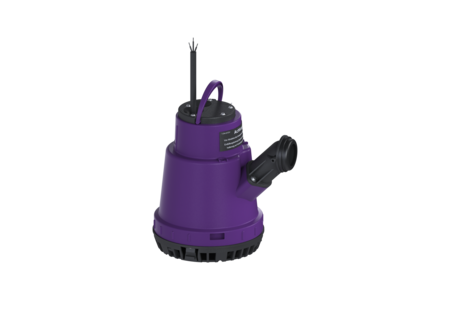

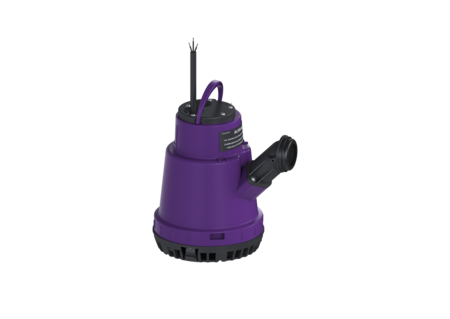

KESSEL Tech kit Minilift L Underfloor KTP 300, with a submersible KTP 300 pump, operating mode S1, Single unit, pumping height 6 m

Item no. 280570-TK
GTIN 4026092108086
Price group 20

Tech kit Minilift L Underfloor KTP 300
For combination with a KESSEL shell kit for creating a Minilift S small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Includes float switch for level measurement Variant Type of system: Single unit Pump control: Float switch Backflow preventer: integrated Dimensions Net weight: 4,21 kg Gross weight: 4,49 kg Packaging dimension: length: 280 mm Packaging dimension: width: 250 mm Packaging dimension: height: 280 mm Pumping device Pump: KTP 300 Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 8 m³/h Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (pump): C 16 A Length of mains cable for pump: 5 m Rated current: 1,6 A Control Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
  Title Item no.
  Title Item no.
  Title Item no.
20222 Alarm unit with electronic probe 20222 Show
20223 Alarm unit with optical probe 20223 Show
20224 Alarm unit with optical probe 10 m 20224 Show
27126 Adapter DN 50/70 27126 Show
27602 Adapter DN 100/70 27602 Show
28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
28086 Adapter for pressure pipe connection, DN 32, PE 28086 Show
28093 Backflow preventer for plugging in, for DN 50 inlet 28093 Show
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Show
39007 Inlet socket DN 70, with seal, Threaded ring 39007 Show
48500 Odour trap Multistop, System 125 48500 Show
48550 Odour trap Megastop 48550 Show
500101 Hole saw for DN 50/70/100 500101 Show
680696 Odour trap for The Ultraflat 79 680696 Show
680795 Drain body for cover plate for odour trap 50 mm, black 680795 Show
680796 Drain body for cover plate for Multistop, black 680796 Show
680797 Drain body for cover plate for odour trap 50 mm, grey 680797 Show
680798 Drain body for cover plate for Multistop, grey 680798 Show
681111 Adapter DN 40/50 681111 Show
80074 Potential-free contact Extension set for control units 80074 Show
830050 Cover plate surface water resistant, black 366x366mm 830050 Show
830052 Cover plate surface water resistant, tileable 830052 Show
830070 Extension section deeper installation, with flange 830070 Show
850114 Seal for pipe penetration, DN 50 850114 Show
850116 Seal for pipe penetration, DN 70 850116 Show
