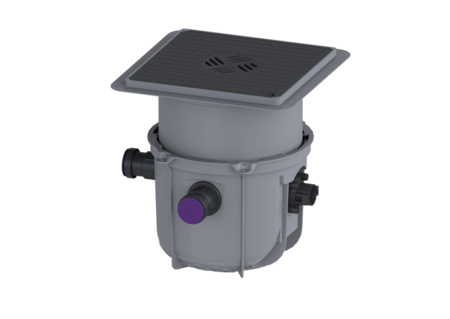

Shell Kit Minilift L Underfloor

black cover

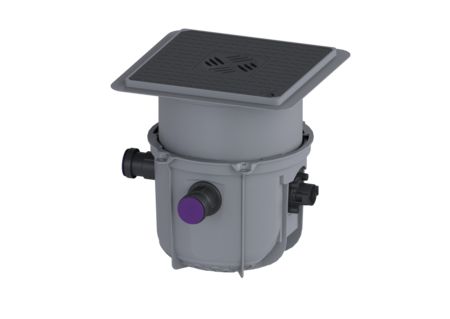

280570S-RBK
280570S-RBK

KESSEL Shell Kit Minilift L Underfloor black cover, wastewater without sewage, floor slab installation, with submersible pumps, type of cover Cover plate with slotted cover

Item no. 280570S-RBK
GTIN 4026092106839
Price group 20

    Shell Kit Minilift L Underfloor black cover
    For combination with a KESSEL technology kit for creating a Minilift S small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL shell kit consisting of: - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - Includes backflow preventer for the pressure pipe - Includes DN 50 connection socket for inlet and conduit pipe General characteristics Colour: grey Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Dimensions Net weight: 7,61 kg Gross weight: 7,61 kg Installation depth: 330 - 460 mm Length: 460 mm Width: 380 mm Packaging dimension: length: 445 mm Packaging dimension: width: 445 mm Packaging dimension: height: 466 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (OD): 60 mm Inlet nominal size (DN): 50 Pumping volume: 7 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1)
      Title Item no.
      Title Item no.
      Title Item no.
    20222 Alarm unit with electronic probe 20222 Show
    20223 Alarm unit with optical probe 20223 Show
    20224 Alarm unit with optical probe 10 m 20224 Show
    27126 Adapter DN 50/70 27126 Show
    27602 Adapter DN 100/70 27602 Show
    28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
    28086 Adapter for pressure pipe connection, DN 32, PE 28086 Show
    28093 Backflow preventer for plugging in, for DN 50 inlet 28093 Show
    39005 Inlet socket DN 50, with seal, Threaded ring 39005 Show
    39007 Inlet socket DN 70, with seal, Threaded ring 39007 Show
    48500 Odour trap Multistop, System 125 48500 Show
    48550 Odour trap Megastop 48550 Show
    500101 Hole saw for DN 50/70/100 500101 Show
    680696 Odour trap for The Ultraflat 79 680696 Show
    680795 Drain body for cover plate for odour trap 50 mm, black 680795 Show
    680796 Drain body for cover plate for Multistop, black 680796 Show
    680797 Drain body for cover plate for odour trap 50 mm, grey 680797 Show
    680798 Drain body for cover plate for Multistop, grey 680798 Show
    681111 Adapter DN 40/50 681111 Show
    80074 Potential-free contact Extension set for control units 80074 Show
    830050 Cover plate surface water resistant, black 366x366mm 830050 Show
    830052 Cover plate surface water resistant, tileable 830052 Show
    830070 Extension section deeper installation, with flange 830070 Show
    850114 Seal for pipe penetration, DN 50 850114 Show
    850116 Seal for pipe penetration, DN 70 850116 Show
      Title Item no.
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): without sewage
    • Type of cover (abdeckungsart): Cover plate with slotted cover
