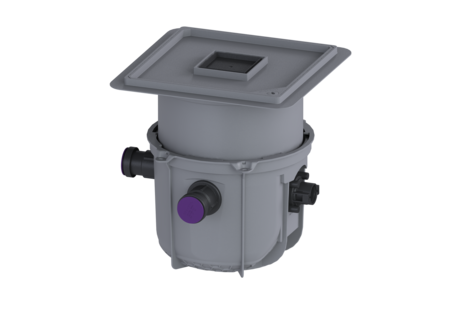

Lifting station Minilift S

for Minilift S, underground, tileable

For combination with a KESSEL technology kit for creating a Minilift S small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL shell kit consisting of: - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - Includes backflow preventer for the pressure pipe - Includes DN 50 connection socket for inlet and conduit pipe

  • Space-saving installation in the floor slab with integrated drainage function
  • System ready to plug in
  • Easy tool-free maintenance

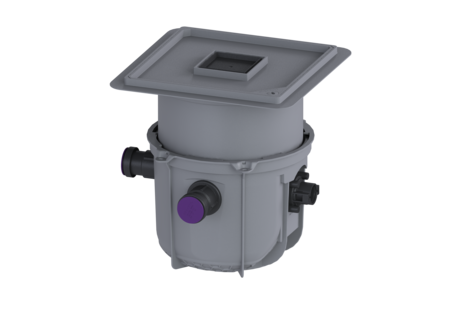

Item no. 280570X-RBK
GTIN 4026092106822
Price group 20

    Lifting station Minilift S for Minilift S, underground, tileable
    For combination with a KESSEL technology kit for creating a Minilift S small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL shell kit consisting of: - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - Includes backflow preventer for the pressure pipe - Includes DN 50 connection socket for inlet and conduit pipe General characteristics Colour: grey Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Dimensions Net weight: 7,17 kg Gross weight: 7,17 kg Installation depth: 330 - 460 mm Width: 380 mm Length: 460 mm Packaging dimension: width: 445 mm Packaging dimension: height: 466 mm Packaging dimension: length: 445 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 60 mm Inlet nominal size (DN): 50 Pumping volume: 7 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Colour of cover: grey Width of cover: 366 mm Length of cover: 366 mm Cover locking: Lock & Lift Load class: K 3 (EN 1253-1)
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): without sewage
    • Type of cover (abdeckungsart): tileable cover plate
