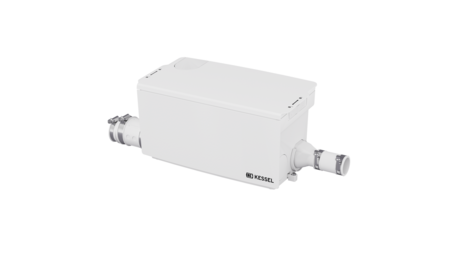

Lifting station Minilift S

GTF 250-S3 230V

28564
PDF product data sheet

The plug-in ready Minilift S small lifting station is suitable for the disposal of domestic wastewater, ideal for connecting a shower, washbasin and air conditioning system. The submersible pump with float switch can be removed without the use of tools. Due to its compact design, the system is ideal for all locations, for free-standing setup or behind a false wall. With a maximum low inlet on each side of the tank in size DN40 or DN50, it is ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Resistant to hot water - Discharge-side backflow preventer integrated in the factory - Powerful pump with multi-vane vortex impeller for maximum operating safety - Tool-free maintenance - Extremely quiet pump operation

Item no. 28564
GTIN 4026092111611
Price group 15

    Lifting station Minilift S GTF 250-S3 230V
    The plug-in ready Minilift S small lifting station is suitable for the disposal of domestic wastewater, ideal for connecting a shower, washbasin and air conditioning system. The submersible pump with float switch can be removed without the use of tools. Due to its compact design, the system is ideal for all locations, for free-standing setup or behind a false wall. With a maximum low inlet on each side of the tank in size DN40 or DN50, it is ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Resistant to hot water - Discharge-side backflow preventer integrated in the factory - Powerful pump with multi-vane vortex impeller for maximum operating safety - Tool-free maintenance - Extremely quiet pump operation Variant Type of system: Single unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: white Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: plug-in ready Cable length: 1,4 m Dimensions Net weight: 3,75 kg Gross weight: 4,75 kg Length: 325 mm Width: 165 mm Height: 173 mm Packaging dimension: length: 396 mm Packaging dimension: width: 227 mm Packaging dimension: height: 275 mm Tank/drain body Pressure pipe connection (DN): 25 Pressure pipe connection (OD): 32 mm Distance pipe bottom outlet to tank bottom: 23 mm Distance pipe bottom inlet to tank bottom: 13 mm Pumping volume: 1 l Tank volume: 4,55 l Pumping device Pump: GTF 250-S3 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 6,5 m³/h Max. pumping height: 5,8 m Speed: 2700 U/min Power P1: 0,25 kW Power P2: 0,15 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 0,75 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 1.4 m Rated current: 1,2 A Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (control unit): B 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Installation situation (einbausituation): free-standing installation
    • Type of wastewater (abwasserart_de): without sewage

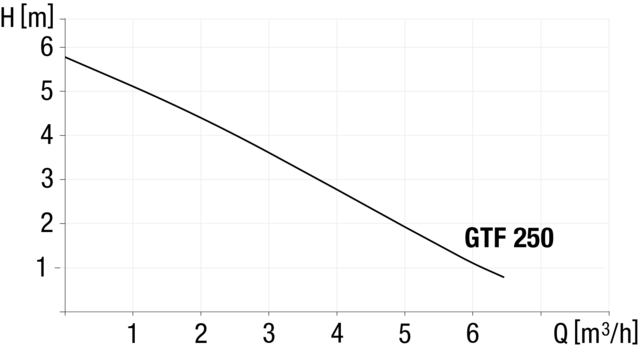

    • Pump (pumpe): GTF 250-S3
