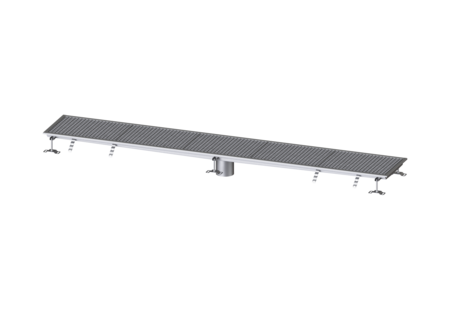

Box Channel Ferrofix
without glued flange, 400x2550mm
KESSEL Box Channel Ferrofix, nominal size (DN) 125, waterproofing layer upper section by Connection flange, width 400 mm, length 2550 mm, type of cover Slotted cover, socket, outside diameter (OD) 125 mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6140250 |
|---|---|
| GTIN | 4026092099100 |
| Price group | 80 |
Box Channel Ferrofix without glued flange, 400x2550mm
The Box Channel Ferrofix made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. Variant Waterproofing layer on the upper section: Connection flange General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Dimensions Length: 2550 mm Width: 400 mm Height: 60 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 2,550 mm
- Width (breite): 400 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
