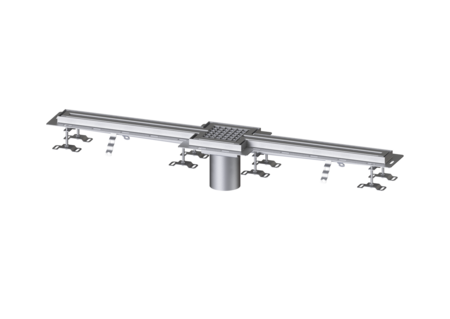

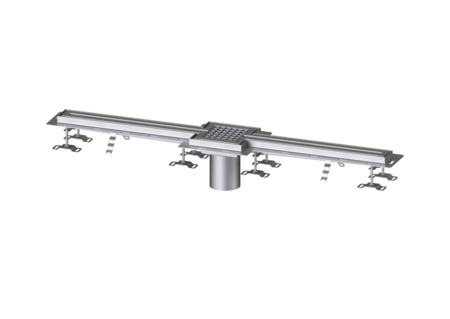

Ferrofix slotted channel
Tile conn. angle profile, 17x1400mm,mid.
KESSEL Ferrofix slotted channel, nominal size (DN) 125, waterproofing layer upper section by Tile connection angle, length 1400 mm, type of cover Slotted cover, position of inlet central, outside diameter (OD) 125 mm
- The channel profile is suitable for installation situations with high thermal loads
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6302140 |
|---|---|
| GTIN | 4026092099803 |
| Price group | 80 |
Ferrofix slotted channel Tile conn. angle profile, 17x1400mm,mid.
The Ferrofix slotted channel made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. The channel profile is suitable for installation situations with high thermal loads. The tile connection angle profile protects against tile breakage at the edge. Variant Waterproofing layer on the upper section: Tile connection angle Position of sink trap: central General characteristics Material: Stainless steel 14301 Nominal size (DN): 125 Outer diameter (OD): 125 mm Dimensions Length: 1400 mm Width: 17 mm Height: 75 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Width of cover: 200 mm Length of cover: 200 mm Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Slot width: 17 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Material (material):
Stainless steel 14301
- Length (laenge): 1,400 mm
- Width (breite): 17 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
