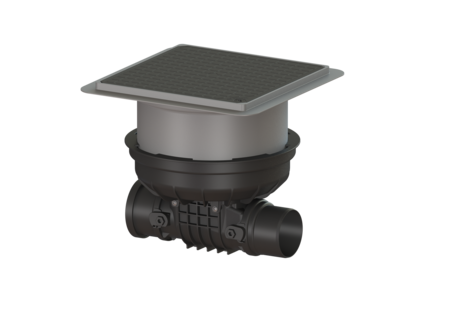

Staufix clean out
DN 100, Floor slab, black
KESSEL Staufix clean out, wastewater for wastewater with and without sewage, nominal size (DN) 100, locking Lock & Lift, floor slab installation, type of cover Cover plate
- Simple conversion to Staufix type 1
- Own gradient only 8 mm
- Quick and toolless access for cleaning
| Item no. | 700100.10S |
|---|---|
| GTIN | 4026092075890 |
| Price group | 10 |
Staufix clean out DN 100, Floor slab, black
The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be supplemented by up to two flaps and one emergency closure or be converted to the StaufixControl backwater valve. General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: for wastewater with and without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 6,3 kg Gross weight: 8,9 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 287 - 410 mm Type of height adjustability: vertically adjustable upper section Length: 444 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Battery 3 V for control unit | 680665 | Show |
 | Seal Cover seal for Staufix DN 90-110 | 686112 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Seal Lip seal, System 330 mm | 686115 | Show |
 | Testing funnel with seal | 70214 | Show |
 | Lockable cover, DN90-100 | 72235 | Show |
 | Cover plate surface water resistant, tileable | 830052 | Show |
 | Spigot DN 100 | 830100 | Show |
 | Socket DN 100 | 830101 | Show |
| Manuals | |
|---|---|
| CAD Data |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
- Length (laenge): 444 mm
- Width (breite): 444 mm
