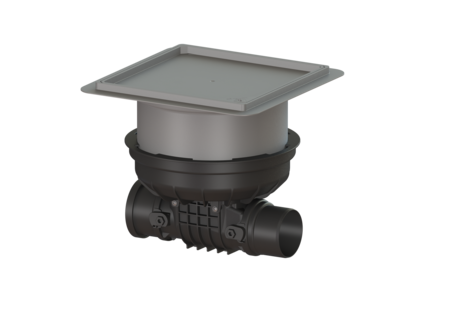

Staufix clean out

DN 100, Floor slab, tileable

KESSEL Staufix clean out, wastewater for wastewater with and without sewage, nominal size (DN) 100, locking Lock & Lift, floor slab installation, type of cover tileable cover plate

  • Simple conversion to Staufix type 1
  • Own gradient only 8 mm
  • Quick and toolless access for cleaning
Item no. 700100.10X
GTIN 4026092075906
Price group 10

    Staufix clean out DN 100, Floor slab, tileable
    The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be supplemented by up to two flaps and one emergency closure or be converted to the StaufixControl backwater valve. General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: for wastewater with and without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 5,8 kg Gross weight: 8,4 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 287 - 410 mm Vertical adjustment: vertically adjustable upper section Length: 444 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Tightness: surface water resistant Max. flooring height: 18 mm
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section deeper installation, with flange 830070 Show
    Extension section, flange & counterfl., 830073 Show
    Extension section Floor slab, for waterproof concrete 830075 Show
      Title Item no.
    Battery 3 V for control unit 680665 Show
    Seal Cover seal for Staufix DN 90-110 686112 Show
    Seal for cover plate, System 330 mm 686114 Show
    Seal Lip seal, System 330 mm 686115 Show
    Staufix test funnel with seal 70214 Show
    Lockable cover, DN90-100 72235 Show
    Cover plate 830050 Show
    Spigot DN 100 830100 Show
    Socket DN 100 830101 Show
    • Nominal size (DN) (nennweite): 100
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Length (laenge): 444  mm
    • Width (breite): 444  mm
