Staufix clean out

DN 125, Floor slab, black

KESSEL Staufix clean out, wastewater for wastewater with and without sewage, nominal size (DN) 125, locking Lock & Lift, floor slab installation, type of cover Cover plate

  • Simple conversion to Staufix type 1
  • Own gradient only 8 mm
  • Quick and toolless access for cleaning
Item no. 700125.10S
GTIN 4026092075920
Price group 10

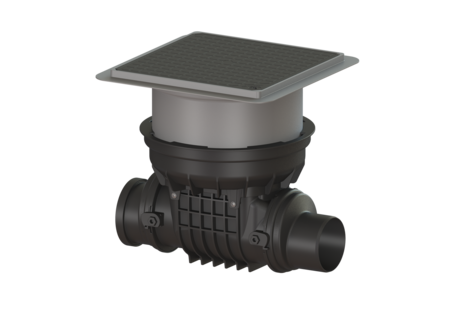

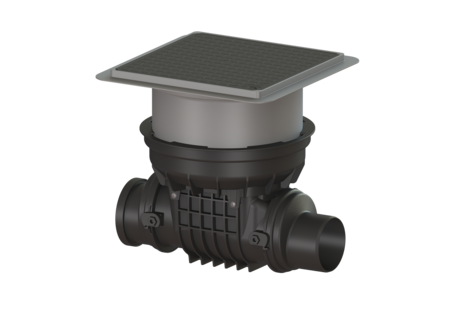

    Staufix clean out DN 125, Floor slab, black
    The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be supplemented by up to two flaps and one emergency closure or be converted to the StaufixControl backwater valve. General characteristics Colour: black Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: for wastewater with and without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 8 kg Gross weight: 10,6 kg Groundwater resistant from lower edge of base section: 3 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 341 - 464 mm Vertical adjustment: vertically adjustable upper section Length: 511 mm Width: 444 mm Packaging dimension: length: 586 mm Packaging dimension: width: 486 mm Packaging dimension: height: 486 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section deeper installation, with flange 830070 Show
    Extension section, flange & counterfl., 830073 Show
    Extension section Floor slab, for waterproof concrete 830075 Show
      Title Item no.
    Battery 3 V for control unit 680665 Show
    Seal Cover seal for Staufix, DN 125-200 686113 Show
    Seal for cover plate, System 330 mm 686114 Show
    Seal Lip seal, System 330 mm 686115 Show
    Staufix test funnel with seal 70214 Show
    Lockable cover, DN125-200 72236 Show
    Cover plate 830052 Show
    Spigot DN 125, with seal 83082 Show
    Staufix Premium Socket DN 125 83086 Show
    • Nominal size (DN) (nennweite): 125
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Length (laenge): 511  mm
    • Width (breite): 444  mm
