Grease separator EasyClean ground

NS 7, Auto Mix, 1215-1665 mm, A/B

93007/170B-DSP-TS
93007/170B-DSP-TS

KESSEL Grease separator EasyClean ground, disposal Auto Mix, nominal size 7,00, load class B 125, underground installation, installation depth 1215 - 1665 mm, type of disposal automatic cleaning system, SPF 300 IP68, locking unlocked

  • Program-controlled rinsing device
  • Customisation possible through control unit
  • Low-maintenance operation
Item no. 93007/170B-DSP-TS
Price group 60

Grease separator EasyClean ground NS 7, Auto Mix, 1215-1665 mm, A/B

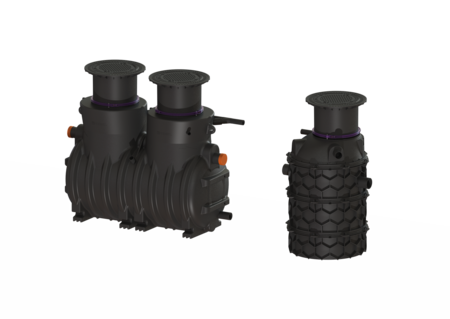

The separator for greasy wastewater for underground installation consists of a grease separator and an engineering chamber. The two-piece system made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an integrated sampling device. Access for cleaning and maintenance work is provided by inspection openings, with polymer upper sections for continuously adjustable height and level compensation. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning takes place via an exterior submersible pump which is installed in a separate engineering chamber and can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. The fully automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system through a potential-free contact. The control unit with 10 m long cable is installed in the engineering chamber in the factory. Cleaning and disposal can be started remotely using the remote control. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. Observance of the Drinking Water Hygiene Directive can be guaranteed through the fully automatic rinsing of the drinking water pipes. The refill inlet and solenoid valves must be installed in a dry room on site. The connections between the grease separator and the engineering chamber as well as the reserve conduits and the connections must be made on site. (see connection set 917421). A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Note on installation depth: Ground installation frost-free depth 1700 mm Shut-off valve: yes Disposal variant: Auto Mix Shredder-Mix-System: yes Sludge bucket: no Nominal size (NS): 7,00 SonicControl: no Disposal system: Disposal connection Refill inlet in accordance with DIN 1988: yes Type of disposal: automatic cleaning system Water supply: 2 solenoid valves 1" Sampling device: Type NBG Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 870 kg Gross weight: 890 kg Diameter: 648 mm Max. length: 3965 mm Installation depth: 1215 - 1665 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 2540 mm Required access area, width: 1235 mm Packaging dimension: length: 3755 mm Packaging dimension: width: 1280 mm Packaging dimension: height: 1622 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 995 mm Distance pipe bottom inlet to tank bottom: 1100 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 1100 l Total volume: 1800 l Contents of sludge trap: 700 l Storage quantity of grease: 280 l Pumping device Pump: SPF 300 IP68 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Protection class: I Insulation class: F Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: no Log book function: yes Multi-line display: yes Battery buffering: no Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): Fuse protection through control unit 400 V
  Title Item no.
  Title Item no.
  Title Item no.
72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
917419.00 Direct disposal Disposal connection, right 917419.00 Show
917419.50 Direct disposal Disposal connection, left 917419.50 Show
917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
917422D Disposal chamber LW 400, underground separators, D 917422D Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917823 SonicControl cable gland Underground separator installation set 917823 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
  • Material (material): PE
  • CE marking (ce_kennzeichnung): yes
  • Control unit (schaltgeraet): yes
  • Disposal system (entsorgungseinrichtung): Disposal connection
  • Installation situation (einbausituation): underground installation
  • Shredder-Mix-System (schredder_mix_system): yes
  • Nominal size (NS) (nenngroesse): 7
  • Load class (belastungsklasse): B 125 (EN 124)
  • Installation depth (einbautiefe): 1,215  mm
  • Total volume (gesamtvolumen): 1,800  l
