Grease separator EasyClean free

NS 15, Mix & Pump, right

93015-01-MS-R
93015-01-MS-R
PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Mix & Pump, nominal size 15, flow direction right, control unit yes, free-standing installation, type of disposal manual disposal and cleaning system, no

  • Inspection window and Refill inlet as standard
  • Clean and odour-free disposal and cleaning
  • Simple control
Item no. 93015-01-MS-R
GTIN 4026092105061
Price group 60

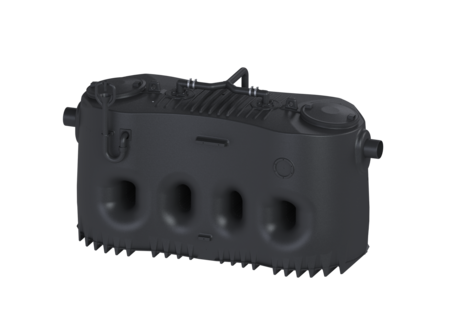

Grease separator EasyClean free NS 15, Mix & Pump, right
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and change lever which can be disconnected from the tank by a shut-off valve. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. Manual control is carried out by a user-friendly control unit that can be integrated into the building management system through a potential-free contact. 20 year polyethylene warranty. Variant Shut-off valve: yes Direction of flow: right Disposal variant: Mix & Pump Shredder-Mix-System: yes Inspection window: yes Nominal size (NS): 15 SonicControl: no Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: manual disposal and cleaning system Water supply: 1 screw-type valve 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 415 kg Gross weight: 490 kg Set-up area, length: 3530 mm Set-up area, width: 1680 mm Set-up area, height: 1950 mm Packaging dimension: length: 3530 mm Packaging dimension: width: 1680 mm Packaging dimension: height: 2085 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Servicing opening: 420 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2230 l Total volume: 3730 l Contents of sludge trap: 1500 l Storage quantity of grease: 600 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Rated current: 6,2 A Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: no Self-diagnosis system (SDS): yes Type of fuse required (control unit): Fuse protection through control unit 400 V
  Title Item no.
  Title Item no.
  Title Item no.
915883 Sampling system DN 200, horizontal 915883 Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
680003 Seal DN 150 680003 Show
680126 Hose clamp d: 110 mm 680126 Show
680275 Valve 2-way redistributor 680275 Show
680329 Shut-off valve DN 100, polymer, horizontal 680329 Show
680434 Flexible coupling DN 100, L: 100 mm 680434 Show
680555 Flexible coupling with hose clamps, DN 75, L: 100 mm 680555 Show
680916 Geared motor for SPF 300 KE, IP 55 680916 Show
680917 Pump casing for SPF 300 KE 680917 Show
681095 Control unit Connect 400 V, grease separator 681095 Show
913109 Inspection window for EasyClean grease separator 913109 Show
916901 Cover d: 625 mm 916901 Show
917001 Clamp fastener for cover 625 mm 917001 Show
917201 Seal for cover 625 mm 917201 Show
917854 Radial impeller with cutting plate and whirler, 3.0 kW 917854 Show
917855 Cutting plate for pump 3,0 kW 917855 Show
917856 Replacement pump SPF 300 KE 2.0 Homogeniser, 3,0 kW 917856 Show
  • Control unit (schaltgeraet): yes
  • Material (material): PE
  • Cover material (abdeckung_material): Polymer
  • Disposal system (entsorgungseinrichtung): Disposal pump
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Shredder-Mix-System (schredder_mix_system): yes
  • Nominal size (NS) (nenngroesse): 15
  • Direction of flow (fliessrichtung): right
  • SonicControl (soniccontrol): no
