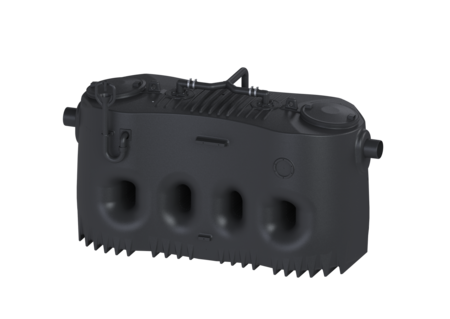

Grease separator EasyClean free
NS 15, Auto Mix & Pump, SonicControl, ri
KESSEL Grease separator EasyClean free, disposal Auto Mix & Pump, Set-up area, width 1680 mm, nominal size 15,00, flow direction right, control unit yes, free-standing installation, type of disposal automatic disposal and cleaning system, yes
- Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
- Clean and odour-free disposal and cleaning
- Customisation possible through control unit
Item no. | 93015-02-PVS-R |
---|---|
GTIN | 4026092105023 |
Price group | 60 |
Grease separator EasyClean free NS 15, Auto Mix & Pump, SonicControl, ri
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and actuator which can be disconnected from the tank by a shut-off valve. The fully automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system through a potential-free contact. Cleaning and disposal can be started remotely using the remote control, which is available as an option. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. Observance of the Drinking Water Hygiene Directive can be guaranteed through the fully automatic rinsing of the drinking water pipes. 20 year polyethylene warranty. Variant Shut-off valve: yes Direction of flow: right Disposal variant: Auto Mix & Pump Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 15,00 SonicControl: yes Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: automatic disposal and cleaning system Water supply: 2 solenoid valves 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 425 kg Gross weight: 500 kg Set-up area, length: 3530 mm Set-up area, width: 1680 mm Set-up area, height: 1950 mm Packaging dimension: length: 3530 mm Packaging dimension: width: 1680 mm Packaging dimension: height: 2085 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Servicing opening: 420 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2230 l Total volume: 3730 l Contents of sludge trap: 1500 l Storage quantity of grease: 600 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 1 Connection type: Direct connection Rated current: 6,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: no Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): Fuse protection through control unit 400 V
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show | |
Sampling system DN 200, horizontal | 915883 | Show | |
Remote control RemoteControl | 916601 | Show | |
Access panel for mounting on-wall | 917413 | Show | |
Access panel for in-wall installation | 917414 | Show | |
Cable extension 10 m, for SonicControl grease separator | 917871 | Show | |
Cable extension 20 m, for SonicControl grease separator | 917872 | Show | |
Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
Title | Item no. | ||
---|---|---|---|
Seal DN 150 | 680003 | Show | |
Hose clamp d: 110 mm | 680126 | Show | |
Valve 2-way redistributor | 680275 | Show | |
Shut-off valve DN 100, polymer, horizontal | 680329 | Show | |
Control unit Auto Mix & Pump, 6.5 , 7.5 and 10 A | 680342 | Show | |
Flexible coupling DN 100, L: 100 mm | 680434 | Show | |
Flexible coupling with hose clamps, DN 75, L: 100 mm | 680555 | Show | |
Actuator Version with flow direction left/right | 680832 | Show | |
Geared motor for SPF 300 KE, IP 55 | 680916 | Show | |
Pump casing for SPF 300 KE | 680917 | Show | |
Solenoid valve 1" | 85047 | Show | |
Inspection window for EasyClean grease separator | 913109 | Show | |
Cover d: 625 mm | 916901 | Show | |
Clamp fastener for cover 625 mm | 917001 | Show | |
Seal for cover 625 mm | 917201 | Show | |
Radial impeller with cutting plate and whirler, 3.0 kW | 917854 | Show | |
Cutting plate for pump 3,0 kW | 917855 | Show | |
Replacement pump SPF 300 KE 2.0 Homogeniser, 3,0 kW | 917856 | Show |
Manuals | |
---|---|
CAD Data | |
Declaration of Performance | |
Declaration of Conformity |
- Disposal variant (entsorgungsvariante): Auto Mix & Pump
- Control unit (schaltgeraet): yes
- Material (material): PE
- Cover material (abdeckung_material): Polymer
- Disposal system (entsorgungseinrichtung): Disposal pump
- Installation situation (einbausituation): free-standing installation
- CE marking (ce_kennzeichnung): yes
- Shredder-Mix-System (schredder_mix_system): yes
- Nominal size (NS) (nenngroesse): 15
- Sludge bucket (schauglas): yes
- Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
- Set-up area, width (aufstellflaeche_breite): 1,680 mm
- Set-up area, length (aufstellflaeche_laenge): 3,530 mm
