EasyClean round grease separator

free, NS 20, Standard

PDF product data sheet

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal takes place with the tank open. 20 year polyethylene warranty.

  • Low-maintenance operation
Item no. 93020.05
Price group 60

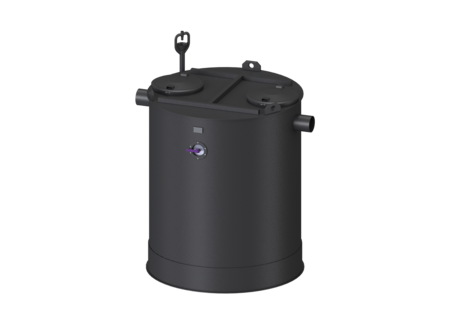

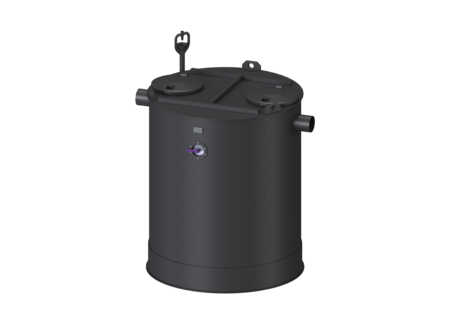

    EasyClean round grease separator free, NS 20, Standard
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal takes place with the tank open. 20 year polyethylene warranty. Variant Disposal variant: Standard Protection class motor: no Sludge bucket: no Nominal size (NS): 20 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Set-up area, width: 1922 mm Set-up area, height: 2300 mm Set-up area, length: 2230 mm Required access area, width: 1880 mm Required access area, height: 2300 mm Required access area, length: 2230 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1850 mm Distance pipe bottom inlet to tank bottom: 1920 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 Inlet nominal size (DN): 200 mm Inlet nominal size (DN): 200 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Cover locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2650 l Total volume: 4650 l Hose: 2000 l Storage quantity of light liquid: 800 l Control Max. permissible switching frequency: no
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 20
    • Sludge bucket (schauglas): no
