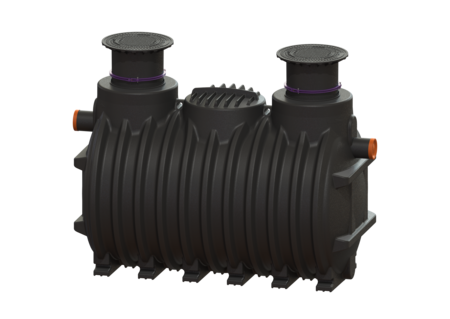

Grease separator EasyClean ground
NS 30, Standard, 800-1235 mm, Class D
KESSEL Grease separator EasyClean ground, disposal Standard, type of disposal manual with suction hose, nominal size 30, load class D 400, underground installation, locking locked
- Vertically adjustable upper section with odour-tight cover plates in various load classes
- Waterproof, resistant to aggressive wastewater
- Low-maintenance operation

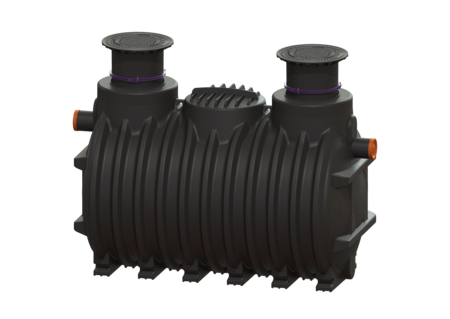

Item no. | 93930/120D |
---|---|
GTIN | 4026092046913 |
Price group | 60 |
Grease separator EasyClean ground NS 30, Standard, 800-1235 mm, Class D
The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 1200 mm Chamber system: Cistern Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 30 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) ATEX: no Dimensions Net weight: 723 kg Gross weight: 730 kg Groundwater resistant from lower edge of base section: 2130 mm Diameter: 659 mm DSC: 700 - 1.500 T-DSC: 480 Max. length: 3660 mm Installation depth: 800 - 1235 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 3470 mm Required access area, width: 2010 mm Packaging dimension: length: 3740 mm Packaging dimension: width: 2010 mm Packaging dimension: height: 2430 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1550 mm Distance pipe bottom inlet to tank bottom: 1650 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 mm Inlet nominal size (OD): 250 mm Inlet nominal size (DN): 250 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 121 mm Locking: locked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 4800 l Total volume: 7800 l Contents of sludge trap: 3000 l Storage quantity of grease: 2000 l Control Control unit: no
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section System 400, H: 600 mm, can be shortened | 915402 | Show | |
Sampling chamber DN 250, Class D | 915884D | Show | |
Access panel for mounting on-wall | 917413 | Show | |
Access panel for in-wall installation | 917414 | Show | |
Direct disposal LW 400, Disposal connection, right | 917420.00 | Show | |
Direct disposal LW 400, Disposal connection, left | 917420.50 | Show | |
Disposal chamber LW 400, underground separators, A/B | 917422B | Show | |
Disposal chamber LW 400, underground separators, D | 917422D | Show | |
Layer thickness measuring device SonicControl, for grease separators | 917821 | Show | |
Cable extension 10 m, for SonicControl grease separator | 917871 | Show | |
Cable extension 20 m, for SonicControl grease separator | 917872 | Show | |
Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
Title | Item no. | ||
---|---|---|---|
Clamping ring for upper sections d: 600 mm | 680276 | Show | |
Removal key for cover plates | 680278 | Show | |
Seal for cover plate, locked | 680323 | Show | |
Upper section d: 630 mm, surface water resistant | 680324 | Show | |
Seal d: 630 mm, from 01/2015 | 860104 | Show | |
Removal tool for 'Goliath' chamber cover | 917112 | Show |
Manuals | |
---|---|
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- Material (material): PE
- Installation situation (einbausituation): underground installation
- Nominal size (NS) (nenngroesse): 30
- Load class (belastungsklasse): D 400 (EN 124)
- Installation depth (einbautiefe): 800 mm
- Gross weight (gewicht_brutto): 730 kg
