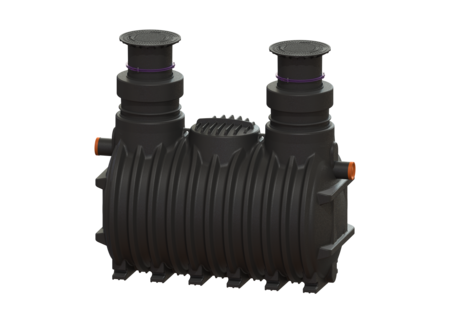

Grease separator EasyClean ground

NS 30, Standard, 1155-1775 mm, Class D

PDF product data sheet

The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty.

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation

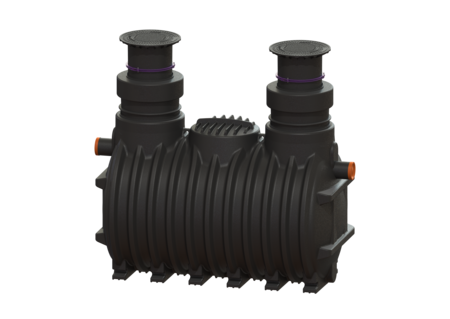

Item no. 93930/170D
GTIN 4026092073414
Price group 60

    Grease separator EasyClean ground NS 30, Standard, 1155-1775 mm, Class D
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Version for deeper installation Sound absorption mat: Cistern Disposal variant: Standard Protection class motor: no Sludge bucket: no Nominal size (NS): 30 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 656 kg Gross weight: 691 kg Groundwater resistant from lower edge of base section: 2130 mm Diameter: 659 mm Load-bearing capacity (DIN 19901): 700 - 1.500 4MS common composition list: 480 Max. length: 3660 mm Installation depth: 1155 - 1775 mm Vertical adjustment: vertically adjustable upper section, can be tilted by 5 degrees Required access area, width: 2010 mm Required access area, length: 3470 mm Packaging dimension: width: 4610 mm Packaging dimension: height: 2382 mm Packaging dimension: length: 2010 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1550 mm Distance pipe bottom inlet to tank bottom: 1650 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 Inlet nominal size (DN): 250 mm Inlet nominal size (DN): 250 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 800 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 121 mm Cover locking: locked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 4800 l Total volume: 7800 l Hose: 3000 l Storage quantity of light liquid: 2000 l Control Max. permissible switching frequency: no
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section System 400, H: 600 mm, can be shortened 915402 Show
    		Access panel for mounting on-wall 917413 Show
    		Access panel for in-wall installation 917414 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    		Direct disposal LW 400, Disposal connection, left 917420.50 Show
    Disposal chamber LW 400, Underground separator, A/B 917422B Show
    Disposal chamber LW 400, Underground separator, D 917422D Show
    'SonicControl' level sensing system 917821 Show
    		Cable extension 10 m, for SonicControl grease separator 917871 Show
    		Cable extension 20 m, for SonicControl grease separator 917872 Show
    		Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    Clamping ring for upper sections d: 600 mm 680276 Show
    Removal key for cover plates 680278 Show
    Seal for cover plate, locked 680323 Show
    Upper section d: 630 mm, surface water resistant 680324 Show
    Gasket 630 mm rotated tank 860104 Show
    Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 30
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 1,155  mm
    • Gross weight (gewicht_brutto): 691  kg
