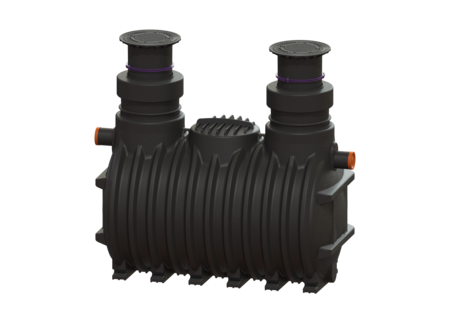

Grease separator EasyClean ground

NS 35, Standard, 1005-1625 mm, Cl. A/B

KESSEL Grease separator EasyClean ground, disposal Standard, type of disposal manual with suction hose, nominal size 35, load class B 125, underground installation, locking unlocked

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation

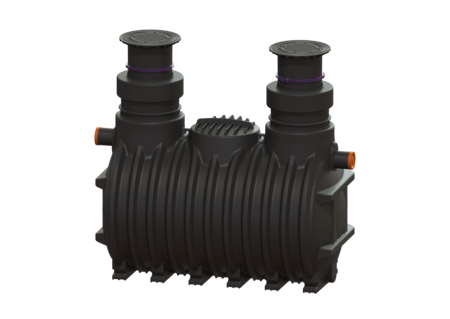

Item no. 93935/170B
GTIN 4026092073421
Price group 60

    Grease separator EasyClean ground NS 35, Standard, 1005-1625 mm, Cl. A/B
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Version for deeper installation Chamber system: Cistern Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 35 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) ATEX: no Dimensions Net weight: 608 kg Gross weight: 642 kg Groundwater resistant from lower edge of base section: 2130 mm Diameter: 648 mm DSC: 700 - 1.800 T-DSC: 330 Max. length: 3660 mm Installation depth: 1005 - 1625 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 3470 mm Required access area, width: 2010 mm Packaging dimension: length: 2010 mm Packaging dimension: width: 4610 mm Packaging dimension: height: 2382 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1700 mm Distance pipe bottom inlet to tank bottom: 1800 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 mm Inlet nominal size (OD): 250 mm Inlet nominal size (DN): 250 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 800 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 4800 l Total volume: 8300 l Contents of sludge trap: 3500 l Storage quantity of grease: 2000 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section System 400, H: 600 mm, can be shortened 915402 Show
    Sampling chamber DN 250, Class B 915884B Show
    Access panel for mounting on-wall 917413 Show
    Access panel for in-wall installation 917414 Show
    Direct disposal LW 400, Disposal connection, right 917420.00 Show
    Direct disposal LW 400, Disposal connection, left 917420.50 Show
    Disposal chamber LW 400, underground separators, A/B 917422B Show
    Disposal chamber LW 400, underground separators, D 917422D Show
    Layer thickness measuring device SonicControl, for grease separators 917821 Show
    Cable extension 10 m, for SonicControl grease separator 917871 Show
    Cable extension 20 m, for SonicControl grease separator 917872 Show
    Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    Clamping ring for upper sections d: 600 mm 680276 Show
    Removal key for cover plates 680278 Show
    Seal for cover plate, locked 680323 Show
    Upper section d: 630 mm, surface water resistant 680324 Show
    Seal d: 630 mm, from 01/2015 860104 Show
    Cover plate Class B, grey cast iron, with seal 860119 Show
    Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 35
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 1,005  mm
    • Gross weight (gewicht_brutto): 642  kg
