Hybrid lifting station Ecolift L

Duo, SWA, SPF 1350-S3, Direct

22005
22005
PDF product data sheet

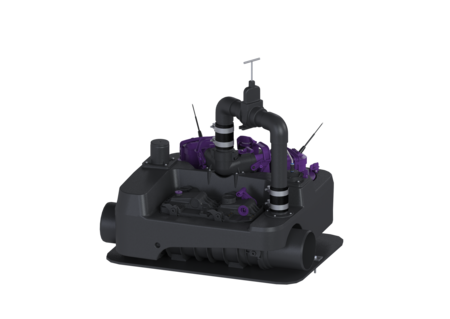

KESSEL Hybrid lifting station Ecolift L, wastewater without sewage, exposed drainage pipe, outlet DN 150 mm, with 2 submersible SPF 1350 pumps, operating mode S3 - 50 %, level measurement pneumatic

  • Hybrid function: uses the natural fall to the sewer - pump is only used in case of backwater
  • Quiet and energy-saving
  • Tool-free maintenance
Item no. 22005
GTIN 4026092105832
Price group 20

    Hybrid lifting station Ecolift L Duo, SWA, SPF 1350-S3, Direct
    The alternative to a sewage lifting station. For faecal-free wastewater, bottom section made of PE-LD, for installation in an exposed drainage pipe, drainage via the gravity pipe to the sewer. Lifting function with one pump or two pumps and, in the event of backwater, two closable hinged flaps. During the backwater phase the wastewater drains via connectable integrated pressure pipe. Including a backflow preventer and shut-off valve for the pressure pipe. Including penetration seals DN 70 for the on-site ventilation pipe Polymer closure system for the drainage pipe for safe closure of the drainage pipe in the event of backwater. Consisting of two hinged flaps including an emergency closure (for manual locking if required). Control unit with an integrated self-diagnosis system (SDS), display of the operating states and integrated battery back-up for alarm signals. User-friendly menu guidance in a multi-line display. With a self-diagnosis system (SDS) and reminder when maintenance is due. Display of the current measured values. Simple adjustment of the function-related parameters, including the operating hour counter and potential-free contact. Optional relaying of alarm and collective error messages via the GSM interface. Control unit with a full text display in six languages. General characteristics Colour: black Type of wastewater: without sewage Installation situation: exposed drainage pipe Approval: Z-53.2-493 Type de protection moteur: IP 68 ATEX: no Dimensions Net weight: 47,62 kg Gross weight: 73,34 kg Length: 700 mm Width: 850 mm Height: 839 mm Packaging dimension: length: 855 mm Packaging dimension: width: 775 mm Packaging dimension: height: 640 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Outlet nominal size (DN): 150 mm Pumping volume: 20 l Wastewater contents Total volume: 66 l Pumping device Pump: SPF 1350 Number of pumps: 2 Rated current: 6 A Protection class (pump): IP 68 (3m/48h) Max. pumping capacity: 26 m³/h Max. pumping height: 10 m Power P1: 1,35 kW Power P2: 0,86 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1 m Rated current: 6 A Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
    22200 Wall bracket for Ecolift L 22200 Show
    22202 Active carbon filter for DN 70 22202 Show
    22203 Level sensor  for Ecolift L 22203 Show
    22205 Visual alarm generator for Ecolift L 22205 Show
    80889 Cable accessories Extension for probe 80889 Show
    80890 Cable accessories Extension for motor 80890 Show
    80891 Cable accessories Extension for pump 80891 Show
      Title Item no.
    681157 Outlet socket for Ecolift L 681157 Show
    		Fixing set with bracket and screws 681158 Show
    		Active carbon filter incl. housing 681159 Show
    		Active carbon filter without housing 681160 Show
    681161 Pump with cable and swivel connection 681161 Show
    681162 Y-pipe with flap housing 681162 Show
    681163 Locking for flap housing 681163 Show
    681164 Immersion pipe incl. sealing cap, 5 m hose 681164 Show
    681165 Pressure pipe connection for outlet sockets 681165 Show
    681166 One-handed closure for alarm generator 681166 Show
    681167 Shut-off valve for pressure pipe OD 63 681167 Show
    681169 Control unit for Ecolift L Comfort Duo 681169 Show
    • Control unit (schaltgeraet): Comfort
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
