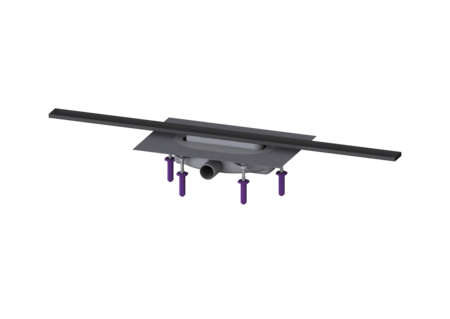

Shower chan. Linearis Infinity 60

L: 900 mm, DN 40, Black, br., Megastop

The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The channel profile made of 316 stainless steel can be extended straight or at three (30, 45 and 90 degree) angles. The drain body made of PP is equipped with sound and settlement absorbers. The channel contains a clip-on flange with factory-mounted waterproofing membrane to EN 1253-1 and DIN 18534-1-W3-I. The channel profile can be pushed in the lengthwise and transverse direction in the clip-on flange to level out construction tolerance. Including odour trap with 24 mm water seal. Open seepage water openings, without flooding of the waterproofing level in the event of backwater.

Item no. 45302.09
GTIN 4026092094297
Price group 10

    Shower chan. Linearis Infinity 60 L: 900 mm, DN 40, Black, br., Megastop
    The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The channel profile made of 316 stainless steel can be extended straight or at three (30, 45 and 90 degree) angles. The drain body made of PP is equipped with sound and settlement absorbers. The channel contains a clip-on flange with factory-mounted waterproofing membrane to EN 1253-1 and DIN 18534-1-W3-I. The channel profile can be pushed in the lengthwise and transverse direction in the clip-on flange to level out construction tolerance. Including Megastop mechanical odour trap with water seal. Open seepage water openings, without flooding of the waterproofing level in the event of backwater. Variant Water supply: W3-I Discharge rate (l/s) with 10 mm backwater: 0,2 Discharge rate (l/s) with 20 mm backwater: 0,4 General characteristics Nominal size (DN): 40 Dimensions Net weight: 2,93 kg Gross weight: 2,93 kg Min. design height: 60 mm Vertically adjustable: yes Width: 111 mm Length: 264 mm Packaging dimension: width: 256 mm Packaging dimension: height: 110 mm Packaging dimension: length: 1112 mm Tank/drain body Outlet nominal size (OD): 40 mm Outlet nominal size (DN): 40 mm Material of drain body: PP System: lateral Coverage features Type of cover: Stainless steel cover Cover material: 316 stainless steel Width of cover: 45 mm Length of cover: 900 mm Min. flooring height: 11 mm Surface: Black brushed Cover locking: placed Load class: K 3 (EN 1253-1) Max. flooring height: 25 mm Shape of upper section: square Odour trap: Megastop

    Video

    Installation Video

      Title Item no.
      Title Item no.
      Title Item no.
    Hair filter for Linearis Infinity shower channel 45102 Show
    Connecting piece, 90 degree for Linearis Infinity, Black, brushed 45102.01 Show
    Connecting piece, 45 degree for Linearis Infinity, Black, brushed 45102.02 Show
    Connecting piece, 30 degree for Linearis Infinity, Black, brushed 45102.03 Show
    Connector straight, f. Linearis Infinity 45103 Show
    Odour trap for Linearis Infinity shower chan. 24 mm 680941 Show
      Title Item no.
    Insert grating for Linearis Infinity, Black, brushed 680944 Show
    Removal aid for Linearis Infinity odour trap 680948 Show
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): 316 stainless steel
    • System (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): Megastop
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 40  mm
    • Length of cover (abdeckung_laenge): 900  mm
