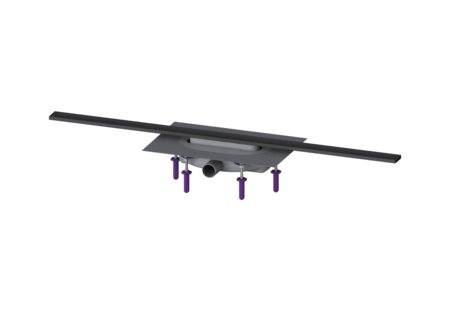

Shower chan. Linearis Infinity 60

L: 1000 mm, DN 40, Black, br., Megastop

45302.10
45302.10

KESSEL Shower chan. Linearis Infinity 60, cover length 1000 mm, outlet DN 40 mm, surface Black brushed, type of cover Stainless steel cover, odour trap Megastop

  • Channel profile made of 316 stainless steel
  • Including Sound and settlement absorbers
  • No flooding of the waterproofing level in the event of water build-up
Item no. 45302.10
GTIN 4026092094303
Price group 10

    Shower chan. Linearis Infinity 60 L: 1000 mm, DN 40, Black, br., Megastop
    The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The narrow Linearis Infinity channel for walk-in showers is suitable for indoor linear drainage for household and commercial use. The channel profile made of 316 stainless steel can be extended straight or at three (30, 45 and 90 degree) angles. The drain body made of PP is equipped with sound and settlement absorbers. These reduce operating noise and can compensate for subsidence in the floor structure. The channel contains a clip-on flange with a factory-mounted waterproofing membrane according to DIN EN 1253-1 and DIN 18534-1-W3-I. The channel profile can be pushed in the lengthwise and transverse direction in the clip-on flange to compensate for construction tolerances. Including Megastop mechanical odour trap with water seal. Open seepage water openings, without flooding of the waterproofing level in the event of build-up. Variant Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Discharge rate (l/s) with 10 mm backwater: 0,2 Discharge rate (l/s) with 20 mm backwater: 0,4 General characteristics Nominal size (DN): 40 ATEX: no Odour trap: Megastop Dimensions Net weight: 3,03 kg Gross weight: 3,03 kg Min. design height: 60 mm Vertically adjustable: yes Length: 264 mm Width: 111 mm Packaging dimension: length: 1112 mm Packaging dimension: width: 256 mm Packaging dimension: height: 110 mm Tank/drain body Outlet nominal size (OD): 40 mm Outlet nominal size (DN): 40 mm Material of drain body: PP Socket version: lateral Coverage features Type of cover: Stainless steel cover Cover material: 316 stainless steel Width of cover: 45 mm Length of cover: 1000 mm Min. flooring height: 11 mm Surface: Black brushed Locking: placed Load class: K 3 (EN 1253-1) Max. flooring height: 25 mm Shape of upper section: square

    Video

    Installation Video

      Title Item no.
      Title Item no.
      Title Item no.
    45102 Hair filter for Linearis Infinity shower channel 45102 Show
    45102.01 Connecting piece, 90 degree for Linearis Infinity, Black, brushed 45102.01 Show
    45102.02 Connecting piece, 45 degree for Linearis Infinity, Black, brushed 45102.02 Show
    45102.03 Connecting piece, 30 degree for Linearis Infinity, Black, brushed 45102.03 Show
    45103 Connector straight, Linearis Infinity shower chan. 45103 Show
    680941 Odour trap for Linearis Infinity shower chan. 24 mm 680941 Show
      Title Item no.
    680944 Insert grating for Linearis Infinity, Black, brushed 680944 Show
    680948 Removal aid for Linearis Infinity odour trap 680948 Show
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): 316 stainless steel
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): Megastop
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 40  mm
    • Length of cover (abdeckung_laenge): 1,000  mm
