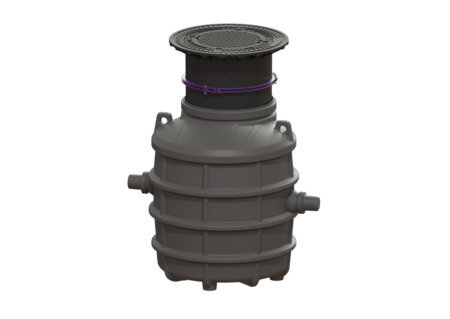

Grease separator EasyClean ground

NS 1, Standard, 800-1200 mm, Class A/B

Back to table of variants PDF product data sheet

The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty.

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation
Item no. 93001/120B
GTIN 4026092025338
Price group 60

    Grease separator EasyClean ground NS 1, Standard, 800-1200 mm, Class A/B
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 1200 mm Sound absorption mat: Standard chamber system Disposal variant: Standard Protection class motor: no Sludge bucket: no Nominal size (NS): 1 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 105 kg Gross weight: 112 kg Groundwater resistant from lower edge of base section: 500 mm Diameter: 648 mm Installation depth: 800 - 1200 mm Vertical adjustment: vertically adjustable upper section, can be tilted by 5 degrees Required access area, width: 1106 mm Required access area, height: 1300 mm Required access area, length: 1380 mm Packaging dimension: width: 1400 mm Packaging dimension: height: 1550 mm Packaging dimension: length: 1100 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 540 mm Distance pipe bottom inlet to tank bottom: 610 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 Inlet nominal size (DN): 110 mm Inlet nominal size (DN): 100 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Cover locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 230 l Total volume: 370 l Hose: 140 l Storage quantity of light liquid: 70 l Control Max. permissible switching frequency: no
      Title Item no.
      Title Item no.
      Title Item no.
    Sampling chamber LW 1000, DN 100, Class B 9151010B Show
    Extension section System 400, H: 600 mm, can be shortened 915402 Show
    Sampling chamber LW 400, DN 100/150, Load class A 915880A Show
    Sampling chamber LW 400, DN 100/150, Class B 915880B Show
    Sampling chamber d: 450 mm, DN 100, Load class A 915881A Show
    Sampling chamber d: 450 mm, DN 100, Class B 915881B Show
    		Direct disposal Disposal connection, right 917419.00 Show
    		Direct disposal Disposal connection, left 917419.50 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    		Direct disposal LW 400, Disposal connection, left 917420.50 Show
    Disposal chamber LW 400, Underground separator, A/B 917422B Show
    Disposal chamber LW 400, Underground separator, D 917422D Show
    Extension section d: 600 mm, Extension 500 mm 917460 Show
      Title Item no.
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 1
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 800  mm
    • Gross weight (gewicht_brutto): 112  kg
