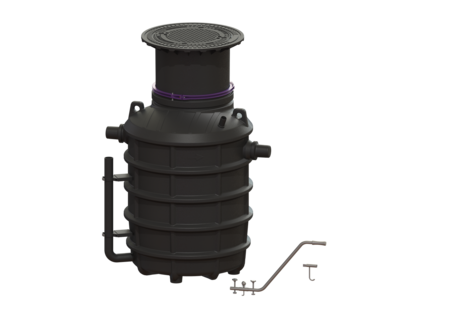

Grease separator EasyClean ground

NS 4, Direct, 550-950 mm, A/B, right

PDF product data sheet

The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. A direct disposal pipe socket is available for odour-reduced manual disposal. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty.

  • Low odour and clean disposal
  • Defined disposal point
  • Complete emptying of the separator

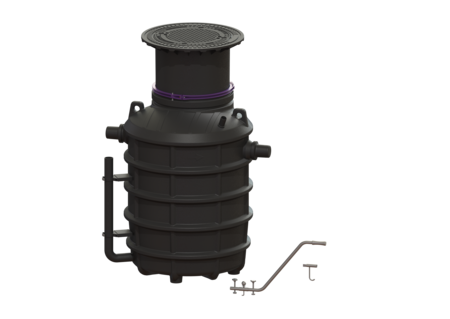

Item no. 93004.80B-DR
GTIN 4026092094983
Price group 60

    Grease separator EasyClean ground NS 4, Direct, 550-950 mm, A/B, right
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. A direct disposal pipe socket is available for odour-reduced manual disposal. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 800 mm Direction of flow: right Disposal variant: Direct Nominal size (NS): 4 Disposal system: Disposal pipe Type of disposal: manual Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 130 kg Gross weight: 137 kg Groundwater resistant from lower edge of base section: 500 mm Diameter: 648 mm Installation depth: 550 - 900 mm Width: 1106 mm Length: 1380 mm Packaging dimension: width: 900 mm Packaging dimension: height: 2365 mm Packaging dimension: length: 900 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1040 mm Distance pipe bottom inlet to tank bottom: 1110 mm Outlet nominal size (DN): 100 Inlet nominal size (DN): 100 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 370 l Hose: 400 l Storage quantity of light liquid: 160 l Sealing water height: 160 l
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Clamping ring for upper sections d: 600 mm 680276 Show
    Removal key for cover plates 680278 Show
    Seal for cover plate, locked 680323 Show
    Upper section d: 630 mm, surface water resistant 680324 Show
    Seal for upper section 860116 Show
    Cover plate Cl. B 860119 Show
    Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Disposal system (entsorgungseinrichtung): Disposal pipe
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 4
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 550  mm
    • Gross weight (gewicht_brutto): 137  kg
    • Direction of flow (fliessrichtung): right
