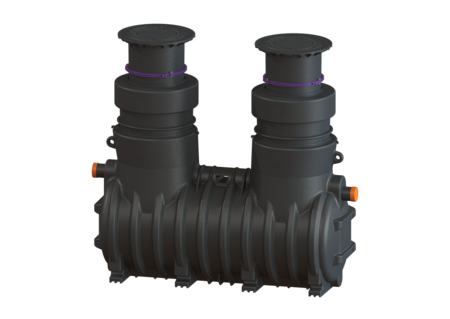

Grease separator EasyClean ground

NS 10, Standard, 1120-1740 mm, Cl. A/B

PDF product data sheet

The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty.

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation
Item no. 93010/170B
GTIN 4026092073322
Price group 60

    Grease separator EasyClean ground NS 10, Standard, 1120-1740 mm, Cl. A/B
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Version for deeper installation Sound absorption mat: Cistern Disposal variant: Standard Protection class motor: no Sludge bucket: no Nominal size (NS): 10 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 387 kg Gross weight: 420 kg Groundwater resistant from lower edge of base section: 1320 mm Diameter: 648 mm Load-bearing capacity (DIN 19901): 700 - 1.800 4MS common composition list: 220 Max. length: 3062 mm Installation depth: 1120 - 1740 mm Vertical adjustment: vertically adjustable upper section, can be tilted by 5 degrees Required access area, width: 1200 mm Required access area, length: 2910 mm Packaging dimension: width: 2150 mm Packaging dimension: height: 1787 mm Packaging dimension: length: 3062 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1030 mm Distance pipe bottom inlet to tank bottom: 1100 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 Inlet nominal size (DN): 160 mm Inlet nominal size (DN): 150 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 800 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Cover locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 1600 l Total volume: 2600 l Hose: 1000 l Storage quantity of light liquid: 400 l Control Max. permissible switching frequency: no
      Title Item no.
      Title Item no.
      Title Item no.
    Sampling chamber LW 1000, DN 150, Class B 9151015B Show
    Extension section System 400, H: 600 mm, can be shortened 915402 Show
    Sampling chamber LW 400, DN 100/150, Load class A 915880A Show
    Sampling chamber LW 400, DN 100/150, Class B 915880B Show
    Sampling chamber DN 150, Load class A 915882A Show
    Sampling chamber DN 150, Class B 915882B Show
    		Access panel for mounting on-wall 917413 Show
    		Access panel for in-wall installation 917414 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    		Direct disposal LW 400, Disposal connection, left 917420.50 Show
    Disposal chamber LW 400, Underground separator, A/B 917422B Show
    Disposal chamber LW 400, Underground separator, D 917422D Show
    Extension section d: 600 mm, Extension 500 mm 917460 Show
    'SonicControl' level sensing system 917821 Show
    		Cable extension 10 m, for SonicControl grease separator 917871 Show
    		Cable extension 20 m, for SonicControl grease separator 917872 Show
    		Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    Clamping ring for upper sections d: 600 mm 680276 Show
    Removal key for cover plates 680278 Show
    Seal for cover plate, locked 680323 Show
    Upper section d: 630 mm, surface water resistant 680324 Show
    Gasket 630 mm rotated tank 860104 Show
    Cover plate Cl. B 860119 Show
    Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 10
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 1,120  mm
    • Gross weight (gewicht_brutto): 420  kg
