EasyClean free Mix & Pump grease separator

The all-rounder for exposed installation.

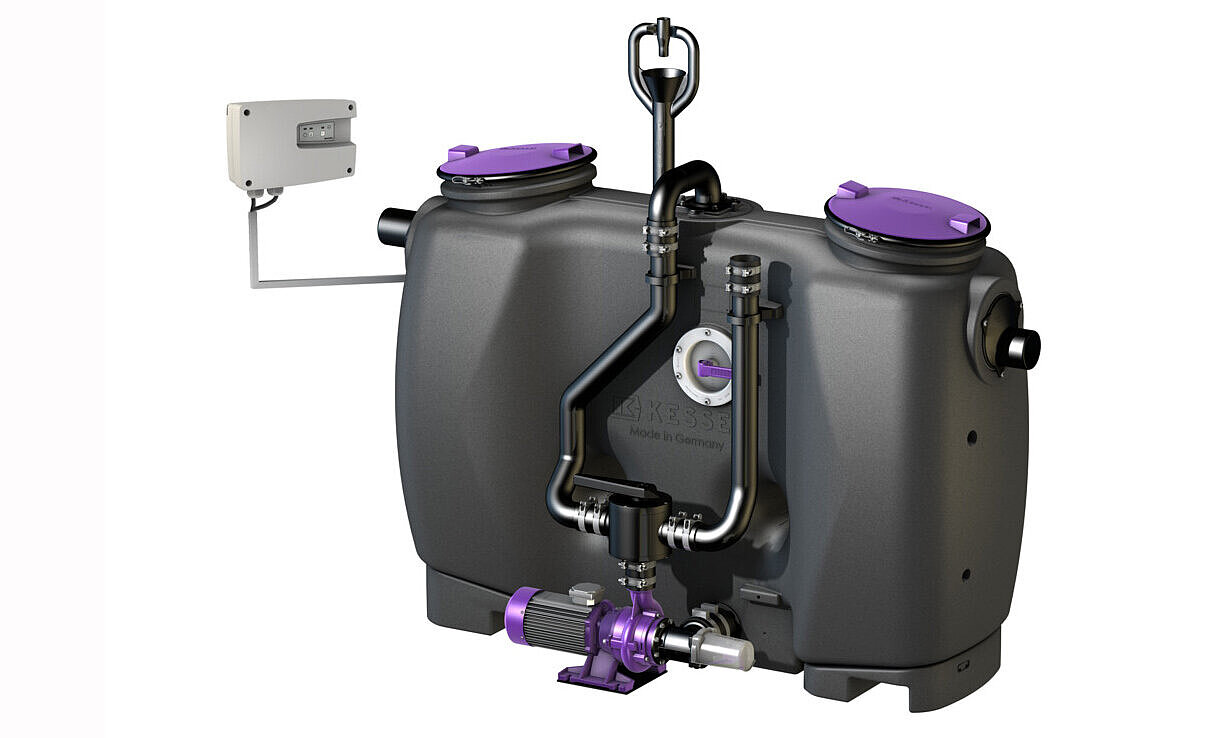

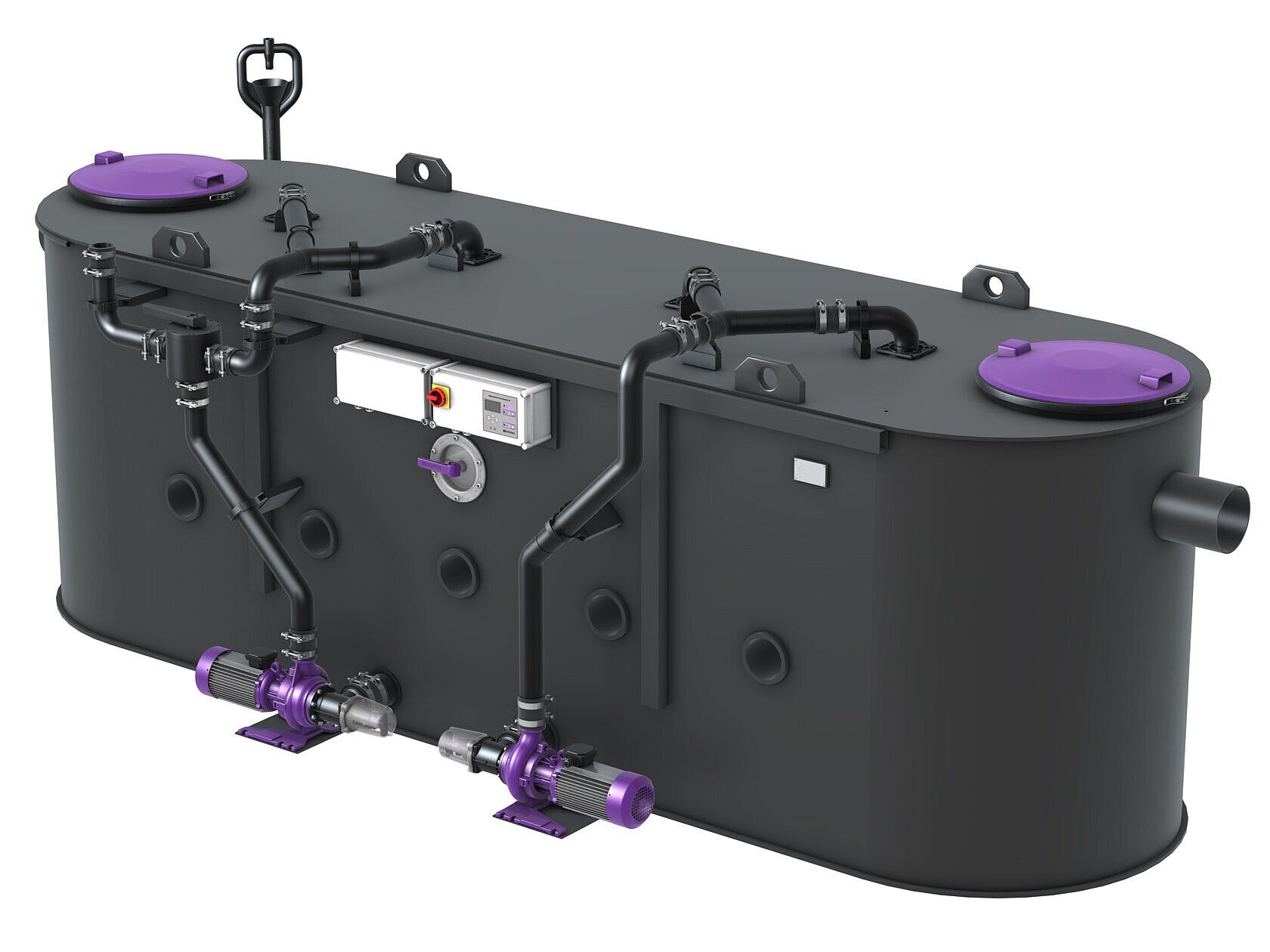

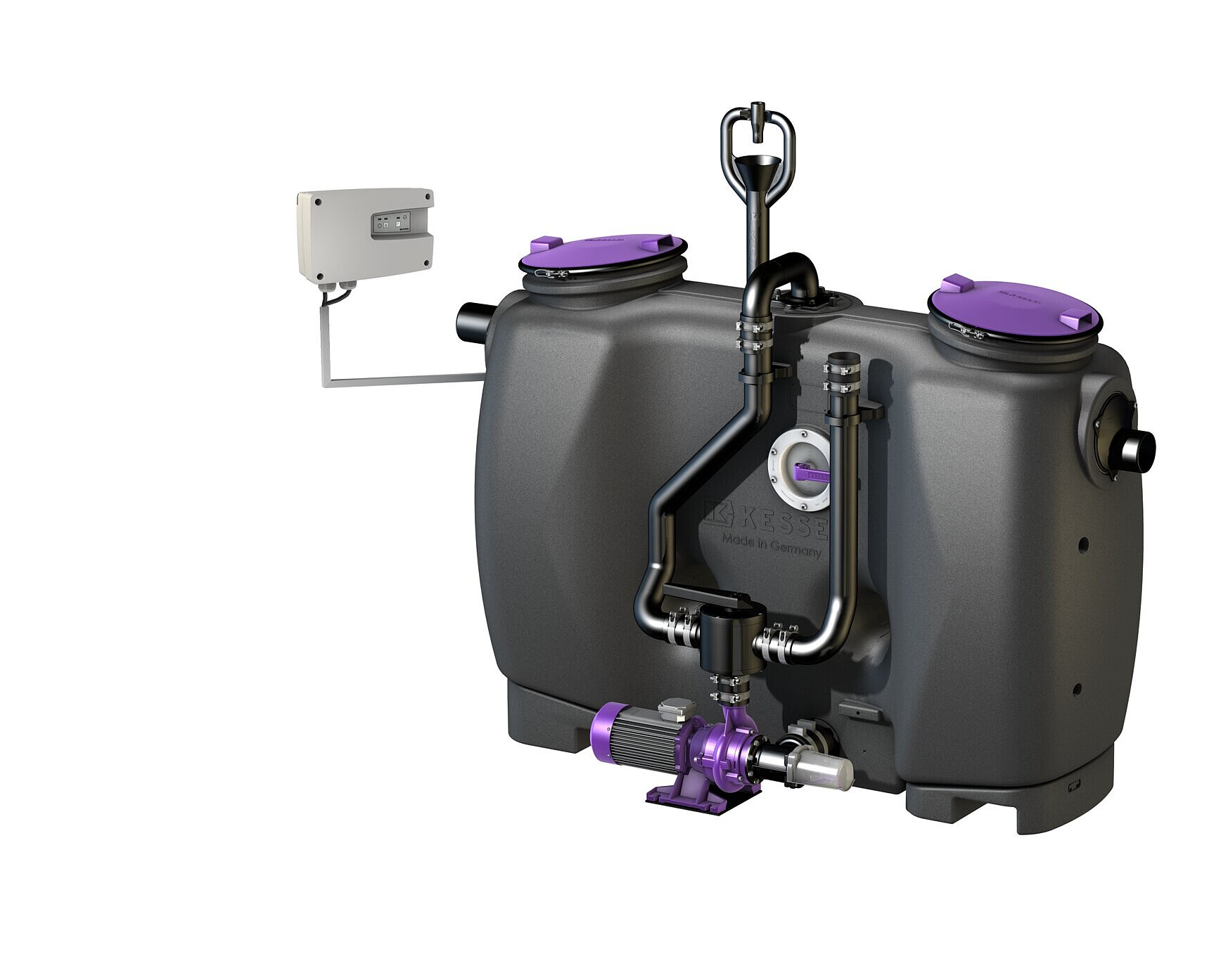

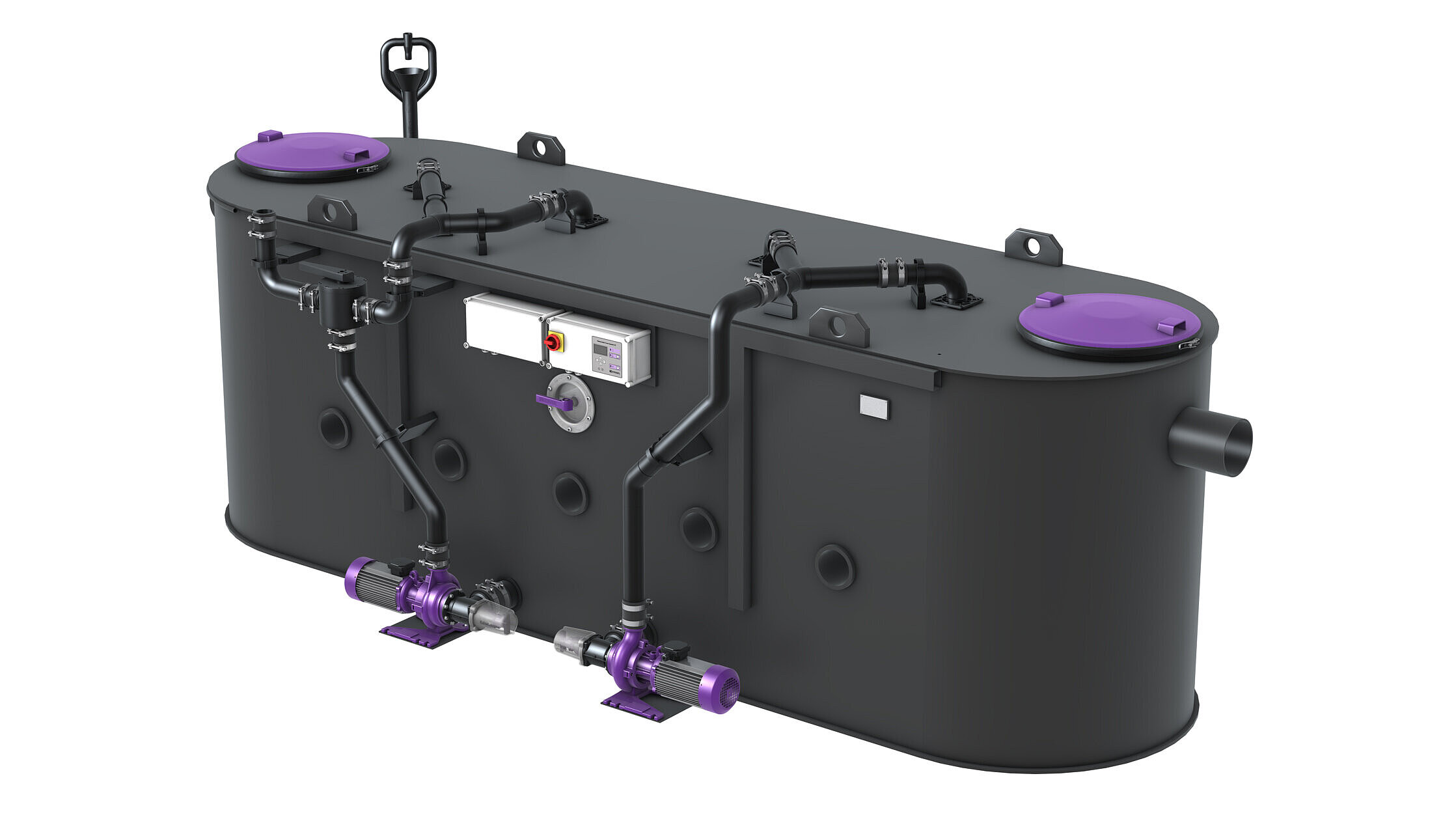

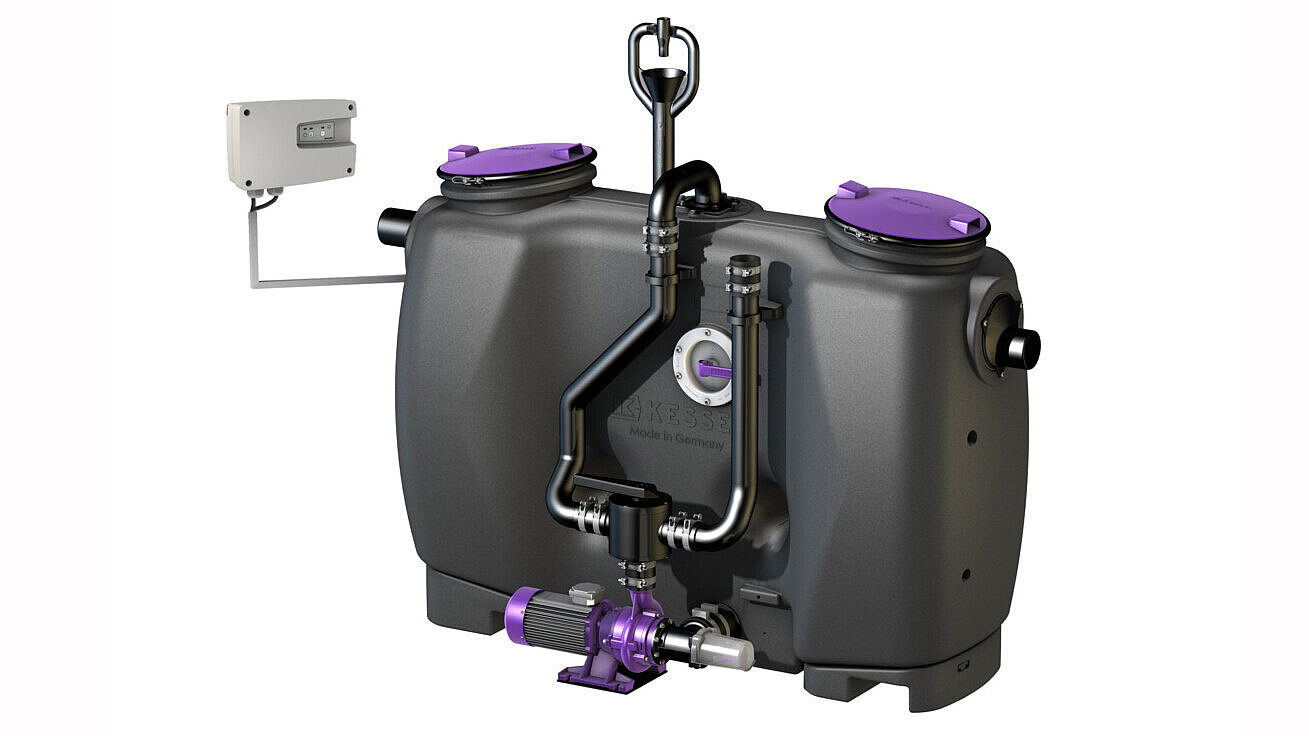

The EasyClean free Mix & Pump has a lot to offer: a pump for the disposal and rinsing, a shredder-mix system for circulation and homogenisation of the tank contents, a control unit for the program run and a direct disposal pipe. The contents of the closed tank are disposed of through permanently installed pipes into the disposal vehicle with the help of a pump.

The grease separator is available in nominal sizes NS 2 to NS 10, which is sufficient for most businesses such as restaurants and hotels. It is also available in nominal sizes NS 15 to NS 50 for larger volumes of wastewater. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages  Article overview

The EasyClean free Mix & Pump has plenty of advantages:

  • Direct disposal: Disposal via the direct disposal pipe – without opening the tank.
  • No odour emissions: The shredder-mix system ensures odourless disposal and cleaning.
  • Central control: The shredder-mix system and refill inlet can be controlled via the control unit.
  • Disposal pump: For installation situations in which the disposal vehicle can no longer extract the wastewater.

Smart helper: Connect control unit

The practical Connect 400 V Mono control unit equipped with NFC can be used to control the pump for the Shredder-Mix-System and for disposal. This means that if the contents of the container have not been sufficiently homogenised for disposal or have not been completely pumped out, the pump's running time can be adjusted manually. All of the operating data is documented in the readable log book. Service technicians can also access even more detailed characteristic data. Connection to the building management system can be realised via a potential-free contact. This means that messages and faults are passed on immediately.



100 % corrosion-free – 20-year guarantee

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

Changeover socket

The flow direction can easily be changed on site thanks to the self-sealing changeover socket. A distinction no longer needs to be made between the “direction of flow right” or “direction of flow left” variants – making the design much easier.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment

EasyClean free Mix & Pump

With SonicControl

  Nominal size (NS)Sludge bucketRefill inlet in accordance with DIN 1988Set-up area, widthSet-up area, length Item no.
93002.02/MS 2 yes yes 841  mm 1,736  mm 93002.02/MS
Show
93003.02/MS 3 yes yes 841  mm 1,736  mm 93003.02/MS
Show
93004.02/MS 4 yes yes 842  mm 2,116  mm 93004.02/MS
Show
93007.02/MS 7 yes yes 1,108  mm 2,147  mm 93007.02/MS
Show
93010.02/MS 10 yes yes 1,108  mm 2,822  mm 93010.02/MS
Show

Without SonicControl

  Nominal size (NS)Sludge bucketRefill inlet in accordance with DIN 1988Set-up area, widthSet-up area, length Item no.
93002.01/MS 2 yes yes 841  mm 1,736  mm 93002.01/MS
Show
93003.01/MS 3 yes yes 841  mm 1,736  mm 93003.01/MS
Show
93004.01/MS 4 yes yes 842  mm 2,116  mm 93004.01/MS
Show
93007.01/MS 7 yes yes 1,108  mm 2,147  mm 93007.01/MS
Show
93010.01/MS 10 yes yes 1,108  mm 2,822  mm 93010.01/MS
Show
93015-01-MS-L 15 yes yes 1,680  mm 3,530  mm 93015-01-MS-L
Show
93015-01-MS-R 15 yes yes 1,680  mm 3,530  mm 93015-01-MS-R
Show
93015.01/MS
15 yes yes 1,620  mm 3,560  mm 93015.01/MS
Show
93020-01-MS-L 20 yes yes 1,680  mm 3,530  mm 93020-01-MS-L
Show
93020-01-MS-R 20 yes yes 1,680  mm 3,530  mm 93020-01-MS-R
Show
93020.01/MS
20 yes yes 1,620  mm 4,510  mm 93020.01/MS
Show
93030.01/MS
30 yes yes 1,620  mm 4,860  mm 93030.01/MS
Show
93035.01/MS
35 yes yes 1,770  mm 6,480  mm 93035.01/MS
Show
93040.01/MS
40 yes yes 1,870  mm 6,680  mm 93040.01/MS
Show
93050.01/MS
50 yes yes 2,070  mm 6,680  mm 93050.01/MS
Show

Not found the right product?

In addition to our standard grease separators we also develop individual solutions on request for special requirements in terms of form, function and dimensioning.

Customised solutions
