Floor trays

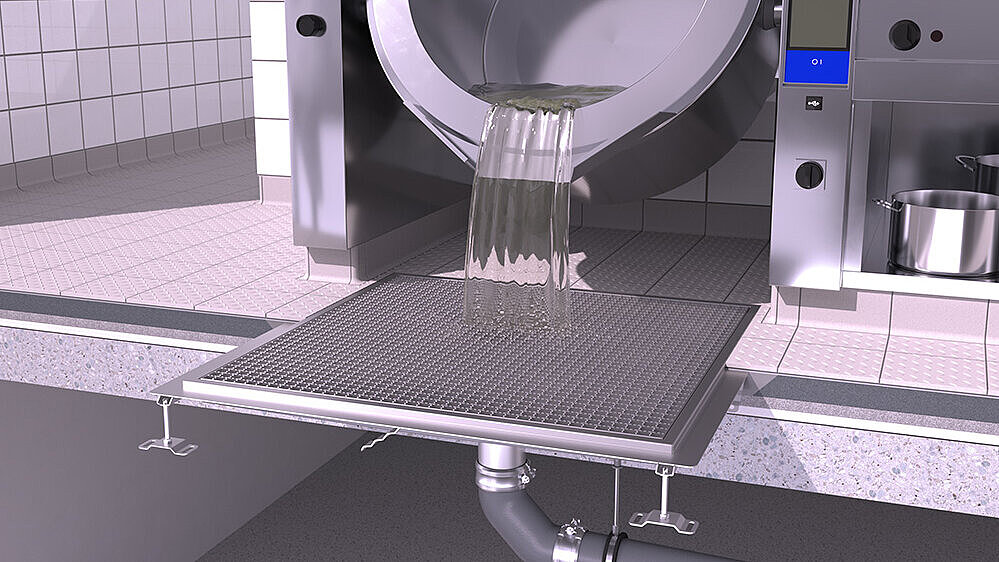

Whether a commercial kitchen, laundry or swimming pool: Stainless steel floor trays are called for in areas where very large volumes of water have to be disposed of, some of which come in surges.

In restaurants, industry or swimming pools, drainage technology has to cope with large quantities of drainage – hygiene also plays a decisive role. Thanks to the stainless steel grade 1.4301 (1.4571 on request) used, the floor trays in the Ferrofix product range are suitable for even the most demanding applications, such as in food processing companies or public swimming pools. The standard range includes pre-assembled floor trays up to 1,000 mm square in size. Need other dimensions? Feel free to contact us.

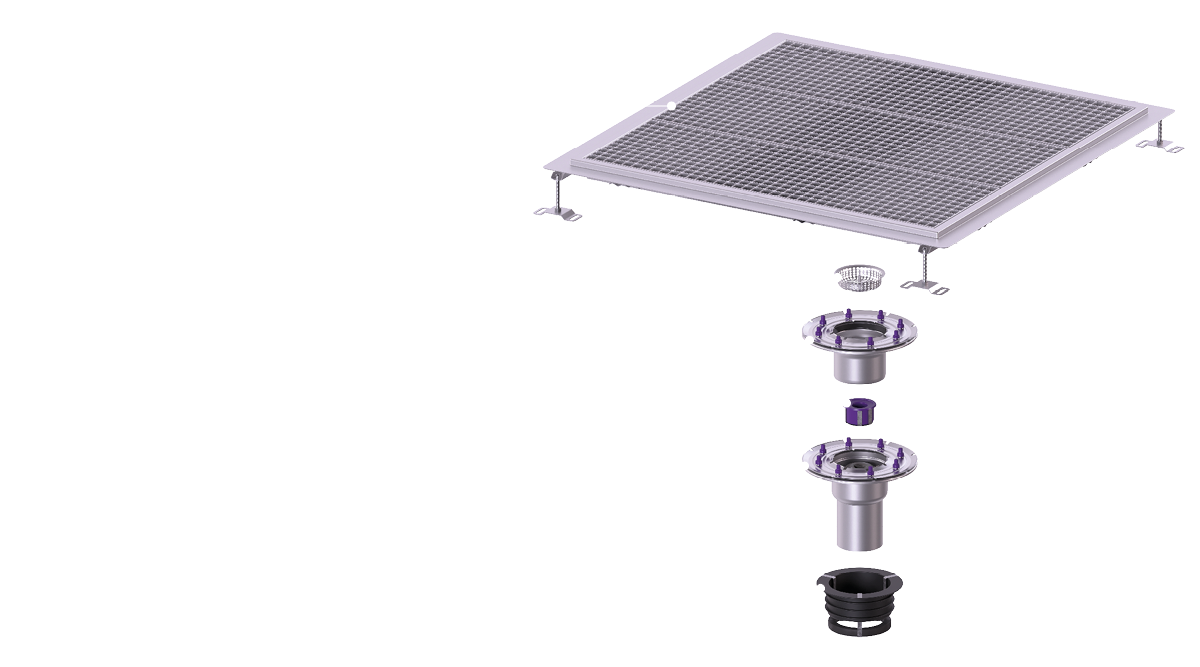

The design at a glance

Only the interaction of the individual elements ensures reliable and safe building drainage. Here we show you which components make up a Ferrofix in detail.

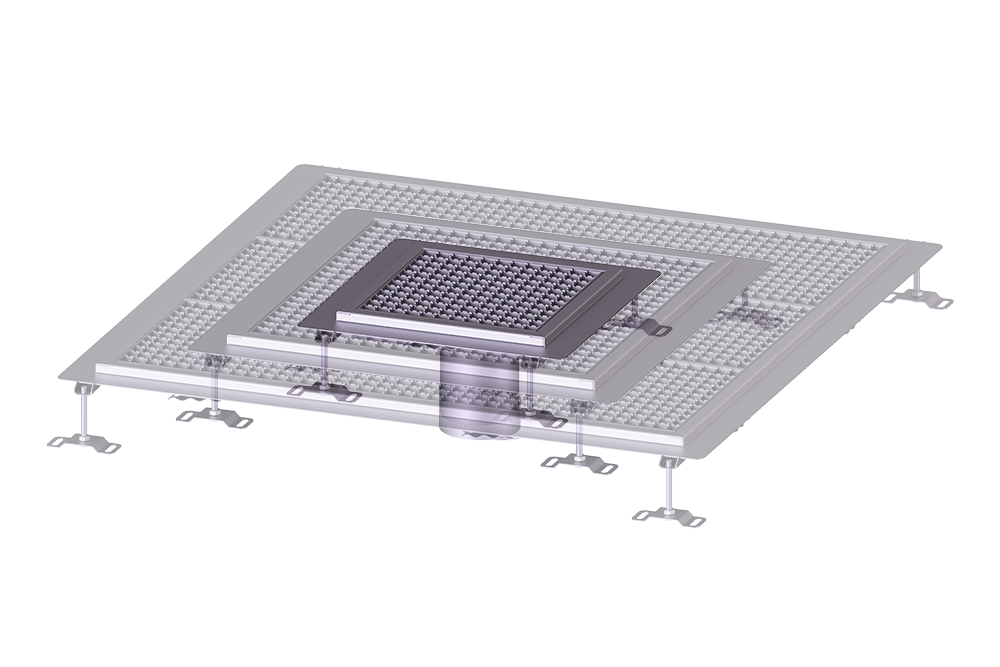

A great shape

Each property has its own characteristics, each application has different requirements. Thanks to different sizes, the trays perfectly adapt to their task of ensuring safe and reliable building drainage.

Anti-slip effect

The risk of accidents increases in areas where water, oil or dirt can make the floor slippery. This is a problem, especially on walk-on and drive-on surfaces. This is why our floor drains can be fitted with upper sections: Available as a fluted plate cover (R11) or as a grated cover (R12).

More scope for adjustments

As an option, we also offer our Ferrofix channels, trays and floor drains with the Variofix stainless steel outlet socket. It offers flexibility for the installation of channels and floor trays as deviations of up to 5 millimetres per socket in any direction, can be compensated for.

More information


Floor Tray Ferrofix

With glued flange 15 mm

  Load classType of coverLengthWidthSurface Item no.
6035035 L 15 (EN 1253-1) Slotted cover 350  mm 350  mm 6035035
6050050 L 15 (EN 1253-1) Slotted cover 500  mm 500  mm 6050050
6050100 L 15 (EN 1253-1) Slotted cover 1,000  mm 500  mm 6050100
L 15 (EN 1253-1) Slotted cover 800  mm 800  mm 6080080

With connection rim

  Load classType of coverLengthWidthSurface Item no.
6100100 L 15 (EN 1253-1) Slotted cover 1,000  mm 1,000  mm 6100100

Not found the right product?

In addition to our existing range of drains and trays, we also develop customised solutions at the customer's request for special demands in terms of shape,
function and dimensioning.

Individual solutions
