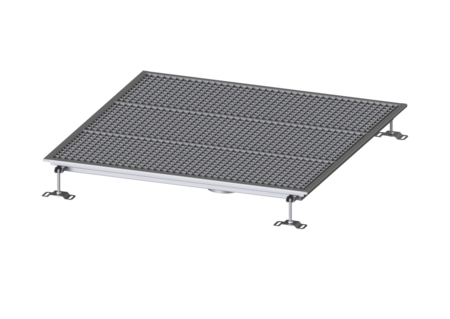

Floor Tray Ferrofix

without glued flange, 1000x1000mm

6100100
6100100

KESSEL Floor Tray Ferrofix, nominal size (DN) 125, length 1000 mm, width 1000 mm, type of cover Slotted cover, socket, waterproofing layer upper section by Connection flange, outside diameter (OD) 125 mm

  • Made of particularly a hygienic and mechanically highly resistant stainless steel
  • Variably combinable with suitable drain bodies
Item no. 6100100
GTIN 4026092066508
Price group 80

    Floor Tray Ferrofix without glued flange, 1000x1000mm
    The Floor tray Ferrofix made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. Variant Waterproofing layer on the upper section: Connection flange General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm ATEX: no Dimensions Net weight: 45 kg Gross weight: 45 kg Length: 1000 mm Width: 1000 mm Height: 60 mm Packaging dimension: length: 1190 mm Packaging dimension: width: 1190 mm Packaging dimension: height: 350 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
    48636 Sludge bucket d: 122 mm, SST 48636 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 125
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): Slotted cover
    • Length (laenge): 1,000  mm
    • Width (breite): 1,000  mm
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • (oberflaeche):
