Lifting stati. Aqualift F XL 300l

Mono, SPF 1500-S3, shut-off valve

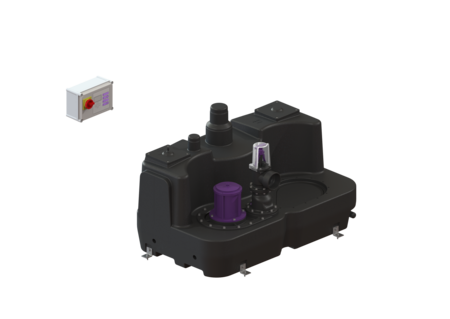

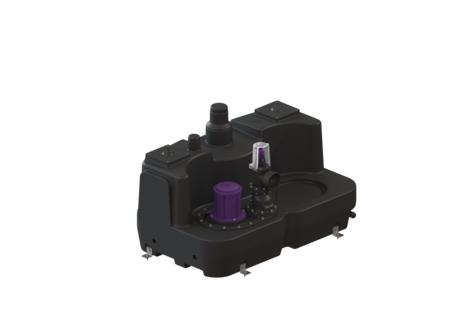

KESSEL Lifting stati. Aqualift F XL 300l Mono, Single unit, 400 V, operating mode S3 - 50 %, with a submersible SPF 1500 pump, shut-off valve Shut-off valve made of polymer, Backflow preventer, pressure pipe connection horizontal

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11029
GTIN 4026092056967
Price group 50

Lifting stati. Aqualift F XL 300l Mono, SPF 1500-S3, shut-off valve
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Mono Dimensions Net weight: 76,69 kg Gross weight: 96,69 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 300 l Pumping device Pump: SPF 1500 Number of pumps: 1 Length of mains cable for pump: 5 m Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Retrofit kit Alarm float switch, for lifting station 28014 Show
Pump motor SPF 1500 / 400 V S3 28028 Show
Immersion pipe, 5 m hose 28050 Show
Replacement set pump flange 28051 Show
Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
Flap housing set Mono, DN 100 28676 Show
Shut-off valve DN 100, Polymer, horizontal 28683 Show
Comfort control unit 400V, Aqualift Mono, 2.5-4.0 A 28755 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Flap housing for Mono systems, without shut-off valve 680060 Show
Cleaning cover screwed, DN 160 680421 Show
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump (pumpe): SPF 1500
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): Shut-off valve made of polymer
