Ferrofix floor drain press, fl.

DN 100, vert, Waterpr layer, slot grat.

54230.21
54230.21

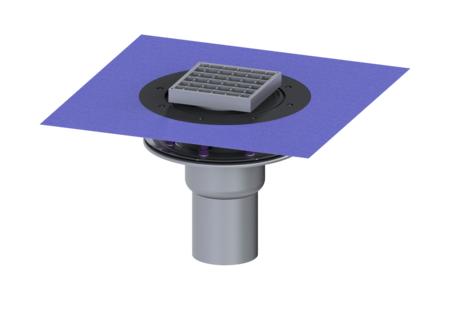

KESSEL Ferrofix floor drain press, fl., nominal size (DN) 100, System 125, socket vertical, upper section material ABS, adjustable in three dimensions, type of cover Slotted cover, outside diameter (OD) 110 mm

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • High flow rate
Item no. 54230.21
GTIN 4026092056431
Price group 70

    Ferrofix floor drain press, fl. DN 100, vert, Waterpr layer, slot grat.
    The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only membranes tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Vertical adjustment: 23 - 40 mm Net weight: 5,26 kg Gross weight: 5,76 kg Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 586 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Surface: pickled Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48100 Fire protection insert Fire-Kit 100, for DN 100 48100 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
    54187 Extension section System 125, with pressure sealing flange 54187 Show
    54189 Extension section System 125, side inlet DN 50/40 54189 Show
    54900 Extension section System 125, 304 stainless steel 54900 Show
    54901 Extension section System 125, with glued flange 54901 Show
    54902 Extension section System 125, Side inlet DN 50 54902 Show
    54903 Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Show
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    48651 Waterproofing membrane for joint sealing, liquid 48651 Show
    48965 Variofix upper section Slotted grating, 304 SST, L 15 48965 Show
    54230 Drain body Ferrofix Press. fl. Sys 125, DN 100, Vert. out 54230 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
