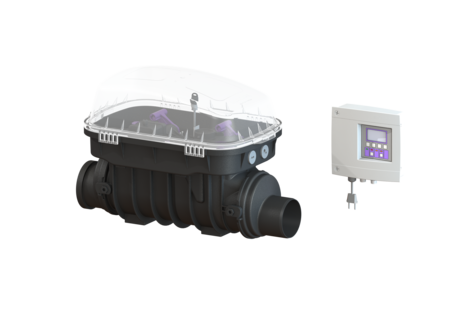

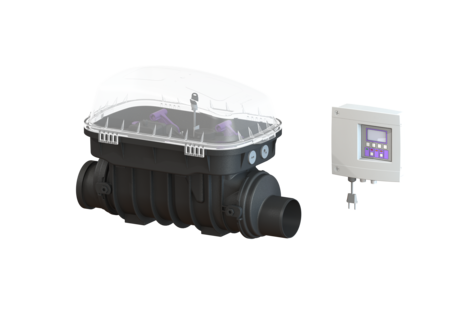

Staufix FKA auto. backwater valve

DN 100, exposed

KESSEL Staufix FKA auto. backwater valve, control unit Comfort, nominal size (DN) 100, wastewater with sewage, locking Clip closure, exposed drainage pipe, type of cover Protective cover

  • Safe, motor-driven closure system with optical probe
  • Fast, simple and toolless maintenance
  • Available as a complete set or module set
Item no. 84100
GTIN 4026092046333
Price group 30

Staufix FKA auto. backwater valve DN 100, exposed
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station. Variant Emergency closure: yes Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 3 Motor type: KSM 140 Protection class (pump): IP 68 (3m/48h) Cable length: 5 m Dimensions Net weight: 11,27 kg Gross weight: 12,79 kg Vertical drop between inlet and outlet: 9 mm Length: 642 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body System: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Cover locking: Clip closure Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Connection to the BCS, BAC: yes
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Clearance code for potential-free contact 80077 Show
Pumpfix F conversion kit DN 100-200, fr. 01/2011, exposed 80097 Show
10 m probe cable extension set 80889 Show
Cable extension set for motor 10 m 80890 Show
Cable prolongation set for pump 10 m 80891 Show
  Title Item no.
Battery 9 V block 680034 Show
Flap holder for motor-driven and mechanical flap 680101 Show
Staufix test funnel with seal 70214 Show
Dichtungsset I für Kessel-Staufix Premiu 70318 Show
Staufix Premium FKA cover 80016 Show
Staufix Premium FKA cover 80017 Show
Motor-driven backwater flap Premium 80038 Show
Insert part f. motor-driven flap Premium 80039 Show
Backwater flap / Insert Premium 80041 Show
Control unit Comfort 230V, Staufix FKA 80071 Show
Staufix FKA drive motor (KSM 140) 5m 80076 Show
Spare part set optical probe 80888 Show
FKA Staufix Protective cover 83031 Show
FKA Staufix transition piece 83032 Show
Staufix Premium Spigot DN 100 83081 Show
Staufix Premium Socket DN 100 83085 Show
  • Nominal size (DN) (nennweite): 100
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Length (laenge): 642  mm
  • Width (breite): 350  mm
  • Backwater protection (rueckstauschutz): Type 3
