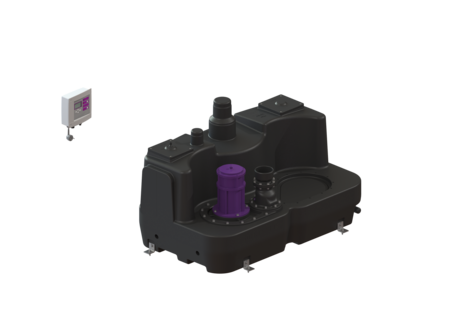

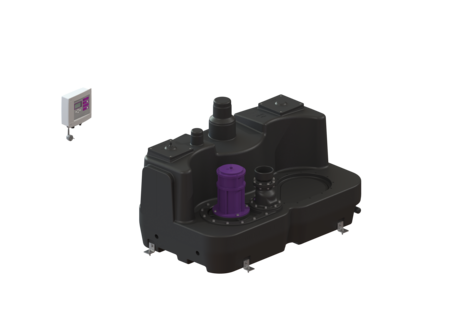

Lifting stati. Aqualift F XL 300l

Mono, SPF 1400-S3

KESSEL Lifting stati. Aqualift F XL 300l Mono, Single unit, 230 V, operating mode S3 - 50 %, with a submersible SPF 1400 pump, shut-off valve without shut-off valve, Backflow preventer, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11009
GTIN 4026092056769
Price group 50

Lifting stati. Aqualift F XL 300l Mono, SPF 1400-S3
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: without shut-off valve Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Mono Dimensions Net weight: 76,89 kg Gross weight: 96,89 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 300 l Pumping device Pump: SPF 1400 Number of pumps: 1 Length of mains cable for pump: 5 m Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Retrofit kit Alarm float switch, for lifting station 28014 Show
Pump motor SPF 1400 / 230 V S3 28029 Show
Immersion pipe, 5 m hose 28050 Show
Replacement set pump flange 28051 Show
Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
Flap housing set Mono, DN 100 28676 Show
Control unit Comfort Mono 230V 28731 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Flap set Rolling ring, flap, flap holder 680053 Show
Flap housing for Mono systems, without shut-off valve 680060 Show
Cleaning cover screwed, DN 160 680421 Show
CAD Data
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump (pumpe): SPF 1400
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): without shut-off valve
