Aqualift F XL, 200 L lift. stat.

Duo, SPF 3000-S3, Backflow preventer

PDF product data sheet

KESSEL Aqualift F XL, 200 L lift. stat. Duo, duo pump, 400 V, shut-off valve without shut-off valve, with 2 submersible SPF 3000 pumps, operating mode S3 - 50 %, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11041
GTIN 4026092057087
Price group 50

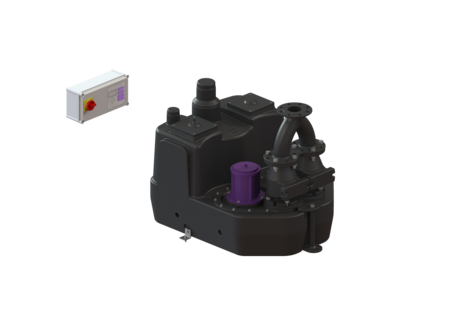

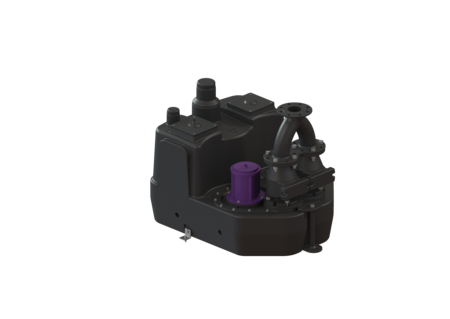

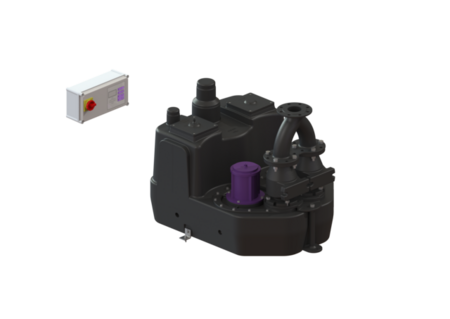

Aqualift F XL, 200 L lift. stat. Duo, SPF 3000-S3, Backflow preventer
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: without shut-off valve Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 170,91 kg Gross weight: 190,91 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 200 l Pumping device Pump: SPF 3000 Number of pumps: 2 Length of mains cable for pump: 5 m Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Retrofit kit Alarm float switch, for lifting station 28014 Show
Backflow preventer DN 80, grey cast iron 28021 Show
Pump drive SPF 3000 400 V, S3, 5 m cable 28027 Show
Y-pipe DN 80 28042 Show
Seal DN 80, for flange 28043 Show
Immersion pipe 5 m Schlauch, incl. screws 28050 Show
Replacement set pump flange 28051 Show
Non-return flap 28074 Show
Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A 28758 Show
Seal Rolling ring, DN 100 680001 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Cleaning cover screwed, DN 160 680421 Show
Manuals
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump (pumpe): SPF 3000
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): without shut-off valve
