Aqualift F XL, 200 L lift. stat.

Mono, SPF 5500-S3,Cast-iron shut-off val

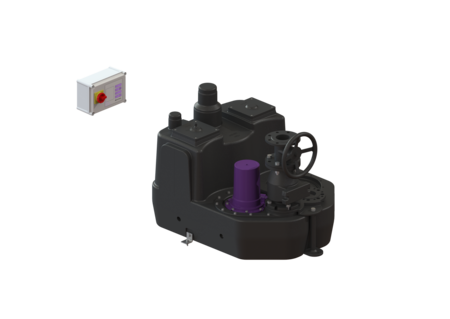

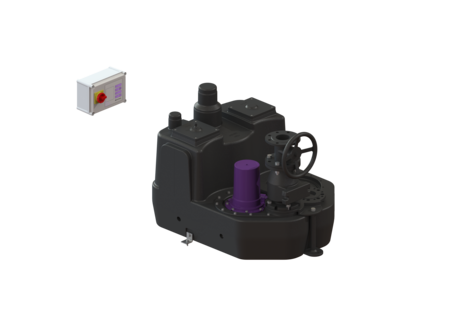

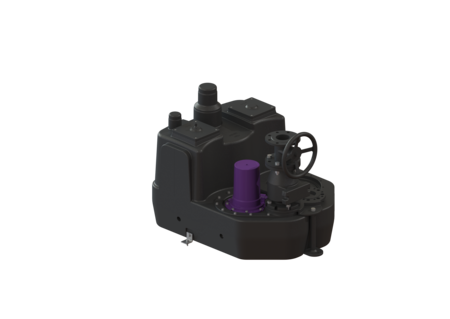

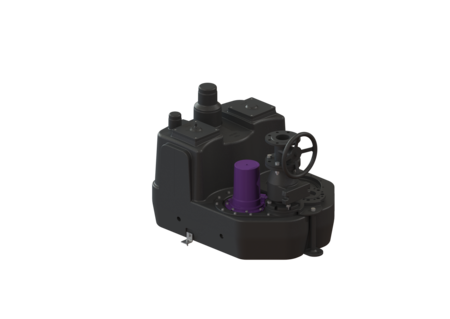

KESSEL Aqualift F XL, 200 L lift. stat. Mono, Single unit, 400 V, shut-off valve Shut-off valve made of cast iron, with a submersible SPF 5500 pump, operating mode S3 - 30 %, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11074
GTIN 4026092057414
Price group 50

Aqualift F XL, 200 L lift. stat. Mono, SPF 5500-S3,Cast-iron shut-off val
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: Shut-off valve made of cast iron Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Mono Dimensions Net weight: 131,3 kg Gross weight: 151,3 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 200 l Pumping device Pump: SPF 5500 Number of pumps: 1 Length of mains cable for pump: 5 m Operating mode: S3 - 30 % Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Retrofit kit Alarm float switch, for lifting station 28014 Show
Backflow preventer DN 80, grey cast iron 28021 Show
Pump motor SPF 5500 / 400 V S3 28025 Show
Shut-off valve 28041 Show
Seal DN 80, for flange 28043 Show
Immersion pipe, 5 m hose 28050 Show
Replacement flap backwater valve DN80 28074 Show
Comfort control unit 400V, Aqualift Mono, 6.3-10.0 A 28781 Show
Seal Rolling ring, DN 100 680001 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Seal for SPF 5500 680120 Show
Cleaning cover screwed, DN 160 680421 Show
Pump flange suitable for pump SPF 5500 680550 Show
Manuals
CAD Data
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump (pumpe): SPF 5500
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): Shut-off valve made of cast iron
