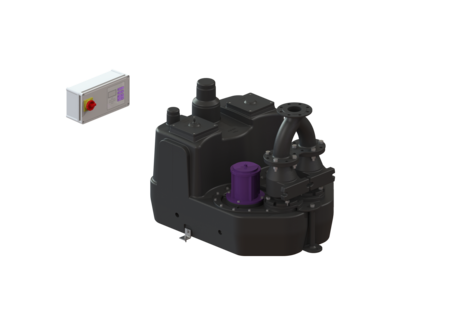

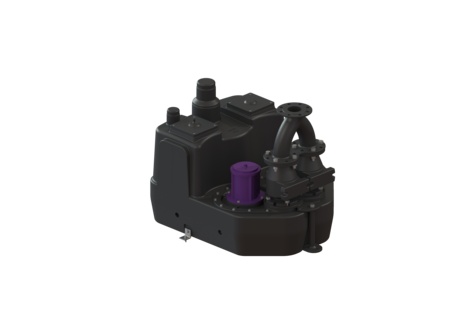

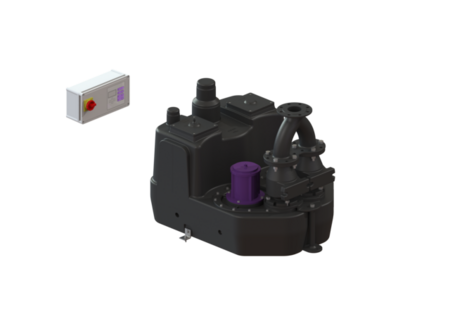

Aqualift F XL, 200 L lift. stat.

Duo, SPF 1500-S1, Backflow preventer

The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover.

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11097
GTIN 4026092057643
Price group 50

Aqualift F XL, 200 L lift. stat. Duo, SPF 1500-S1, Backflow preventer
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Backwater protection: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 170,91 kg Gross weight: 190,91 kg Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Packaging dimension: length: 1650 mm Tank/drain body Tank volume: 200 l Pumping device Pump control: SPF 1500 Number of pumps: 2 Length of mains cable for pump: 5 m Operating mode: S1 Impeller type: Multi-vane impeller Free passage: 40 mm Control Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V Max. permissible switching frequency: Comfort
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Alarm float switch upgrade set Aqualift 28014 Show
Backflow preventer DN 80 28021 Show
Y-coupling for use Aqualift F XL cast ir 28042 Show
Sealing gasket (rubber) DN 80 28043 Show
Immersion pipe, 5 m hose 28050 Show
Replacement set pump flange 28051 Show
Pump motor SPF 1500 / 400 V S1 28065 Show
Replacement flap backwater valve DN80 28074 Show
Comfort control unit 400V, Aqualift Duo, 2x2.5-4.0 A 28757 Show
Seal Rolling ring, DN 100 680001 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Cleaning cover screwed, DN 160 680421 Show
Manuals
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump control (pumpe): SPF 1500
  • Impeller type (laufrad_typ): Multi-vane impeller
  • (absperreinrichtung):
