Lifting stati. Aqualift F XL 300l

Duo, SPF 3000-S1, 2 shut-off valve

11114

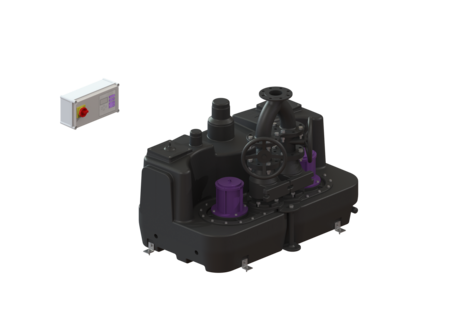

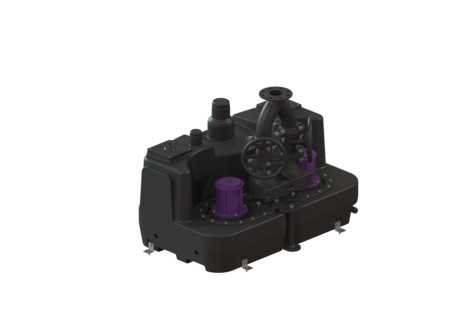

KESSEL Lifting stati. Aqualift F XL 300l Duo, duo pump, 400 V, operating mode S1, with 2 submersible SPF 3000 pumps, shut-off valve 2 shut-off valves made of cast iron, Backflow preventer, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11114
GTIN 4026092057810
Price group 50

Lifting stati. Aqualift F XL 300l Duo, SPF 3000-S1, 2 shut-off valve
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: 2 shut-off valves made of cast iron Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 214,44 kg Gross weight: 234,44 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 300 l Pumping device Pump: SPF 3000 Number of pumps: 2 Length of mains cable for pump: 5 m Operating mode: S1 Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
  Title Item no.
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
28014 Retrofit kit Alarm float switch, for lifting station 28014 Show
28020 Connection adapter Flange socket DN 100, press. pipe PE 28020 Show
28021 Backflow preventer DN 80, grey cast iron 28021 Show
28048 Compressor set for air bubbling 28048 Show
28067 Connection adapter Flange socket DN 80, press. pipe PE 28067 Show
28068 Flange adapter DN 80 to DN 100, Grey iron 28068 Show
28662 Flexible coupling DN 80, L: 200 mm 28662 Show
28663 Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
28682 Shut-off valve DN 80, Polymer, horizontal 28682 Show
28683 Shut-off valve DN 100, Polymer, horizontal 28683 Show
28698 Shut-off valve DN 100, Polymer 28698 Show
28699 Shut-off valve DN 150, Polymer 28699 Show
28712 Flange joint DN 100, for polymer fittings 28712 Show
28713 Flange joint DN 80, for polymer fittings 28713 Show
28714 Flange adapter DN 80, for polymer fitting 28714 Show
28715 Shut-off valve DN 80, Polymer, vertical 28715 Show
28716 Shut-off valve DN 80, Polymer, vertical with flange 28716 Show
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
  Title Item no.
28014 Retrofit kit Alarm float switch, for lifting station 28014 Show
28021 Backflow preventer DN 80, grey cast iron 28021 Show
28041 Shut-off valve DN 80, grey cast iron, with handwheel 28041 Show
28042 Y-pipe DN 80 28042 Show
28043 Seal DN 80, for flange 28043 Show
28050 Immersion pipe 5 m Schlauch, incl. screws 28050 Show
28051 Replacement set pump flange with screw set, flange gasket 28051 Show
28064 Pump drive SPF 3000 400 V, S1, 5 m cable 28064 Show
28074 Non-return flap made of polymer, DN 80 28074 Show
28758 Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A 28758 Show
680001 Seal Rolling ring, DN 100 680001 Show
680003 Seal DN 150 680003 Show
680034 Battery 9 V block 680034 Show
680045 Seal Pump flange 680045 Show
680046 Attachment bracket with screws (2 ea.) 680046 Show
680047 Screw set galvanised, 14 each 680047 Show
680050 Pump flange SPF 1400 - SPF 4500 680050 Show
680052 Seal for SPF 1400 - SPF 4500 680052 Show
680421 Cleaning cover screwed, DN 160 680421 Show
Manuals
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump (pumpe): SPF 3000
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): 2 shut-off valves made of cast iron
