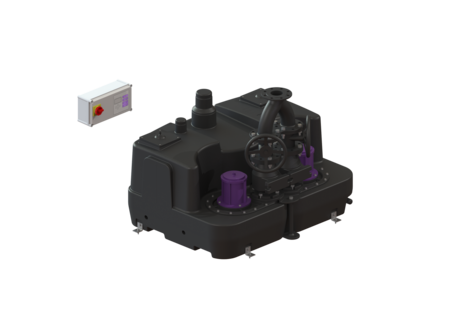

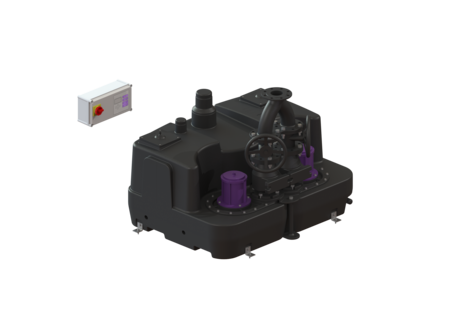

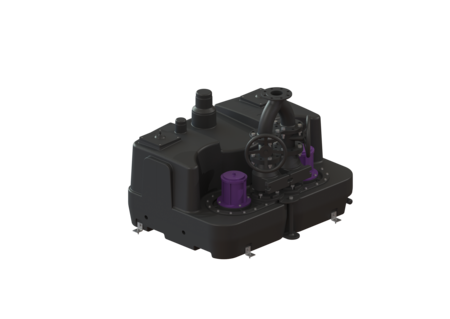

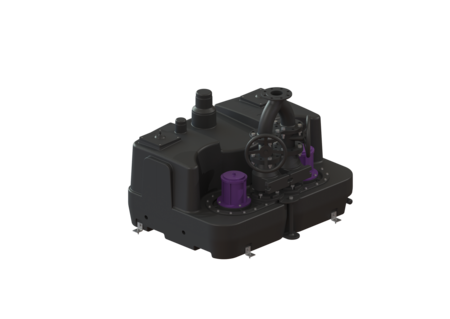

Aqualift F XL, 450 L lift. stat.

Duo, SPF 3000-S1, 2 shut-off valves

KESSEL Aqualift F XL, 450 L lift. stat. Duo, wastewater with sewage, duo pump, 400 V, shut-off valve 2 shut-off valves made of cast iron, with 2 submersible SPF 3000 pumps, operating mode S1

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11119
GTIN 4026092057865
Price group 50

Aqualift F XL, 450 L lift. stat. Duo, SPF 3000-S1, 2 shut-off valves
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: 2 shut-off valves made of cast iron Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 220,6 kg Gross weight: 240,6 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 450 l Pumping device Pump control: SPF 3000 Number of pumps: 2 Length of mains cable for pump: 5 m Operating mode: S1 Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 400 V
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Alarm float switch upgrade set Aqualift 28014 Show
Backflow preventer DN 80 28021 Show
Gate closure valve DN 80 28041 Show
Y-coupling for use Aqualift F XL cast ir 28042 Show
Sealing gasket (rubber) DN 80 28043 Show
Immersion pipe, 5 m hose 28050 Show
Replacement set pump flange 28051 Show
Pump motor SPF 3000 / 400 V S1 28064 Show
Replacement flap backwater valve DN80 28074 Show
Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A 28758 Show
Seal Rolling ring, DN 100 680001 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Cleaning cover screwed, DN 160 680421 Show
Manuals
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump control (pumpe): SPF 3000
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): 2 shut-off valves made of cast iron
