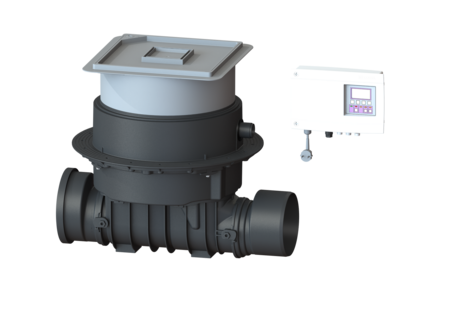

Backwater lifting station Ecolift
DN 200, Floor slab, tileable
KESSEL Backwater lifting station Ecolift, wastewater with sewage, floor slab installation, with a submersible SPZ 1000 pump, load class K 3, outside diameter (OD) 200 mm, level measurement optical probe
- Hybrid function: uses the natural fall to the sewer - pump is only used in case of backwater
- Quiet and energy-saving
- Double safety due to backwater flap and pressure loop
| Item no. | 21200X |
|---|---|
| GTIN | 4026092046876 |
| Price group | 20 |

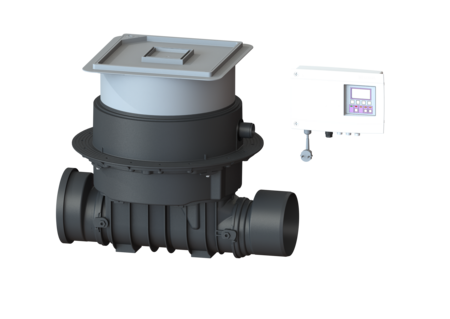

Backwater lifting station Ecolift DN 200, Floor slab, tileable
The backwater lifting station for faecal and non-faecal wastewater is equipped with one pump and one motor-driven closure system. The pipe cross-section is normally open and the water drains to the sewer via natural fall. Backwater is detected by an optical probe, which causes the motor-driven closure system to close automatically. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater above the backwater level and into the sewer. Connection hole in the drain body for installation in the ground, incl. seal for pressure pipe and cable conduit. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Passage seal for conduit pipe (DN): 50 Pump control: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-487 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Dimensions Net weight: 28 kg Gross weight: 33,5 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 720 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Nominal pressure (PN): 6 Pressure pipe connection (OD): 40 mm Socket version: including spigot and socket Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm Odour trap: Multistop Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Control unit: Comfort Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: yes GSM interface: no USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,2 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show |
 | Clearance code for potential-free contact | 80077 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Cable accessories Extension for motor | 80890 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
 | Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Lockable cover Ecolift Outlet side | 21056 | Show |
 | Lockable cover Inlet side | 28054 | Show |
 | Ventilation with activated carbon filter | 28060 | Show |
 | Active carbon filter 5 each | 28061 | Show |
 | Control unit Comfort 230 V, Ecolift, Pumpfix F from 01/2011 | 28071 | Show |
 | Knife replacement set KTP 1000 / SPZ 1000 | 28075 | Show |
 | Replacement pump KTP/SPZ 1000 230 V, cable length 5 m | 28351 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
 | Flap holder for motor-driven and mechanical flap | 680101 | Show |
 | Pressure pipe connection Ecolift, installation in floor slab | 680105 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Drain connection DN 70, with seal | 680215 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Seal set Pumpfix, Ecolift | 70319 | Show |
 | Backwater flap motor-driven, with flap holder | 80038 | Show |
 | Slide-in flap housing for motorised flap with flap holder | 80039 | Show |
 | Drive motor plug-in ready, 5 m cable | 80076 | Show |
 | Spare part set, optical probe 5 m cable | 80888 | Show |
 | Adapter Set optical probe | 80892 | Show |
 | Cover plate 366 x 366 mm w. flat drain body, Multistop, tileable | 830045 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
 | Spigot DN 200, with seal | 83084 | Show |
 | Socket DN 200, with seal | 83088 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Approval | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 200
- Type of wastewater (abwasserart_de):
with sewage
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241795
- Installation situation (einbausituation):
floor slab installation
- Type of cover (abdeckungsart): tileable cover plate
- Length (laenge): 720 mm
- Width (breite): 590 mm
