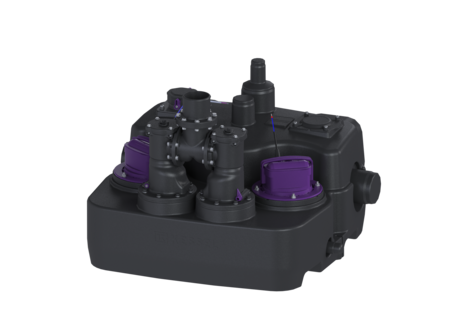

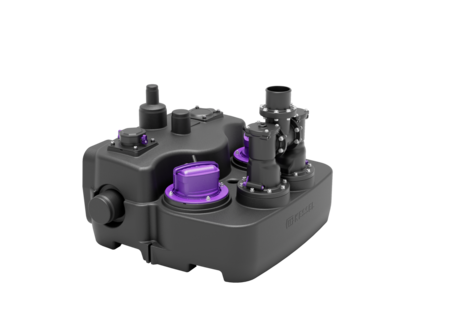

Lifting station Aqualift L
Duo, SPF 1700-S3, 230V
KESSEL Lifting station Aqualift L Duo, wastewater for wastewater with and without sewage, control unit Connect control unit function With alarm message, duo pump, with 2 submersible SPF 1700-S3 pumps, Freestanding pump
| Item no. | 28747 |
|---|---|
| GTIN | 4026092112823 |
| Price group | 20 |
Lifting station Aqualift L Duo, SPF 1700-S3, 230V
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has a closed pump tank with a screwed-on access cover. The station is controlled by a user-friendly control unit. Variant Type of system: duo pump Installation: Dry installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: for wastewater with and without sewage Installation situation: free-standing installation Delivery state: installation-ready System type: Duo Dimensions Length: 764 mm Width: 864 mm Height: 610 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet nominal size (DN): 50 Number of inlets: 4 Pumping volume: 50 l Tank volume: 120,00 l Socket version: including spigot and socket Pumping device Pump: SPF 1700-S3 Number of pumps: 2 Weight, pump: 14 kg Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 36 m³/h Max. pumping height: 12 m Speed: 2850 U/min Power P1: 1,1 kW Power P2: 1,7 kW Operating mode: S3 - 15 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Rated current: 7,7 A Control Control unit: Connect Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 5 m Potential-free contact: optional GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): no Warning equipment version: acoustic and optical signal Type of fuse required (control unit): C 10 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Sound absorption mat Aqualift L Duo | 28098 | Show |
 | Flexible coupling DN 32, L: 200 mm | 28660 | Show |
 | Flexible coupling DN 70, L: 200 mm | 28661 | Show |
 | Flexible coupling DN 80, L: 200 mm | 28662 | Show |
 | Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show |
 | Manual diaphragm pump for manual pumping of wastewater | 28680 | Show |
 | Shut-off valve DN 80, Polymer, horizontal | 28682 | Show |
 | Shut-off valve DN 100, Polymer, horizontal | 28683 | Show |
 | Shut-off valve DN 100, Polymer | 28698 | Show |
 | Shut-off valve DN 150, Polymer | 28699 | Show |
 | Flange joint DN 100, for polymer fittings | 28712 | Show |
 | Shut-off valve DN 80, Polymer, vertical | 28715 | Show |
 | Hole saw for DN 100/125/150 | 500100 | Show |
 | Hole saw for DN 50/70/100 | 500101 | Show |
 | Potential-free contact Extension set for control units Basic | 80074 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
 | Seal for pipe penetration, DN 125 | 850118 | Show |
 | Seal for pipe penetration, DN 150 | 850119 | Show |
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| Declaration of Performance |
- Installation situation (einbausituation):
free-standing installation
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
- Pump (pumpe): SPF 1700-S3
- Operating voltage (betriebsspannung): 230 V
