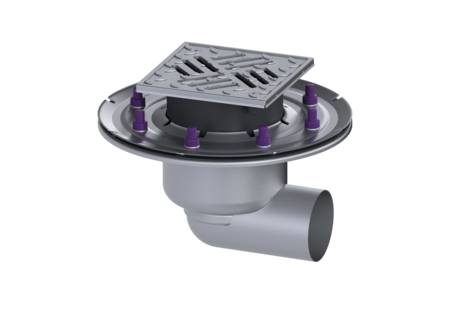

Ferrofix floor drain press, fl.

DN 70, horiz., Slotted grating

KESSEL Ferrofix floor drain press, fl., nominal size (DN) 70, System 125, socket lateral, upper section material ABS, vertically adjustable, type of cover Slotted cover, outside diameter (OD) 78 mm

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • High flow rate
Item no. 54200.61
GTIN 4026092056547
Price group 70

    Ferrofix floor drain press, fl. DN 70, horiz., Slotted grating
    The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only membranes tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm ATEX: no Odour trap: included Dimensions Net weight: 2,77 kg Gross weight: 3,4 kg Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 400 mm Packaging dimension: width: 300 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Locking: screwed Load class: L 15 (EN 1253-1) Slip resistance class: R11 according to DIN 51130; C according to DIN 51097 Rim width: 150 mm Rim length: 150 mm Upper section: vertically adjustable Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
    Extension section System 125, with pressure sealing flange 54187 Show
    Extension section System 125, side inlet DN 50/40 54189 Show
    Extension section System 125, 304 stainless steel 54900 Show
    Extension section System 125, with glued flange 54901 Show
    Extension section System 125, Side inlet DN 50 54902 Show
    Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Show
      Title Item no.
    Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    Upper section Slotted cover, anti-slip, L 15 48176 Show
    Ferrofix drain body, Press. fl. Sys125, DN 70, Horiz outlet 54200 Show
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
