Ferrofix floor/roof drain

DN 100, horiz., Waterpr layer, Slot grt

54420.52
54420.52
PDF product data sheet

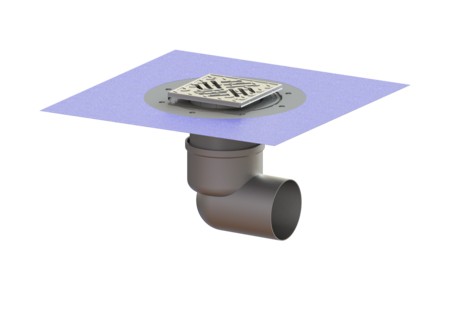

KESSEL Ferrofix floor/roof drain, System 125, nominal size (DN) 100, type of cover Slotted cover, cover length 138 mm, socket lateral, adjustable in three dimensions, outside diameter (OD) 110 mm

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • High flow rate
Item no. 54420.52
GTIN 4026092056295
Price group 70

    Ferrofix floor/roof drain DN 100, horiz., Waterpr layer, Slot grt
    The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Vertical adjustment: 10 - 18 mm Net weight: 3,8 kg Gross weight: 3,89 kg Type of height adjustability: vertically adjustable upper section Length: 196 mm Width: 142 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Locking: screwed Load class: L 15 (EN 1253-1) Slip resistance class: R11 according to DIN 51130; C according to DIN 51097 Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    54187 Extension section System 125, with pressure sealing flange 54187 Show
    54189 Extension section System 125, side inlet DN 50/40 54189 Show
    54900 Extension section System 125, 304 stainless steel 54900 Show
    54901 Extension section System 125, with glued flange 54901 Show
    54902 Extension section System 125, Side inlet DN 50 54902 Show
    54903 Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Show
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    48651 Waterproofing membrane for joint sealing, liquid 48651 Show
    48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
    54420 Ferrofix drain body Sys 125, DN 100, Horizontal outlet 54420 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
