Grease separator EasyClean ground

Multi, Direct-L, NS 4, T 170 mm, B 125

96004-DL-170B
96004-DL-170B
96004-DL-170B
PDF product data sheet

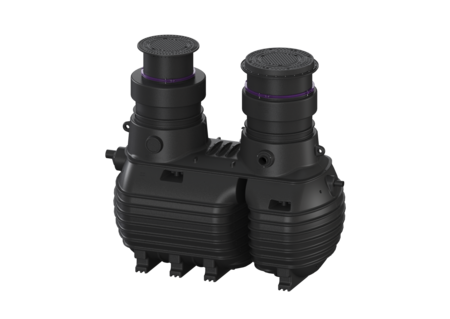

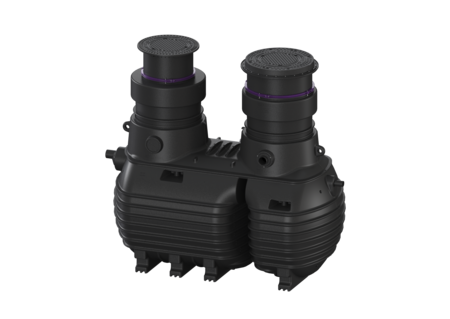

KESSEL Grease separator EasyClean ground, disposal Direct, nominal size 4, load class B 125, underground installation, installation depth 1130 - 1600 mm, type of disposal manual with suction hose, flow direction left, Cistern

  • Low odour and clean disposal
  • Defined disposal point
  • Complete emptying of the separator
Item no. 96004-DL-170B
GTIN 4026092109953
Price group 60

    Grease separator EasyClean ground Multi, Direct-L, NS 4, T 170 mm, B 125

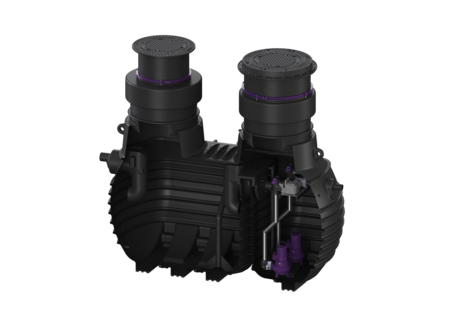

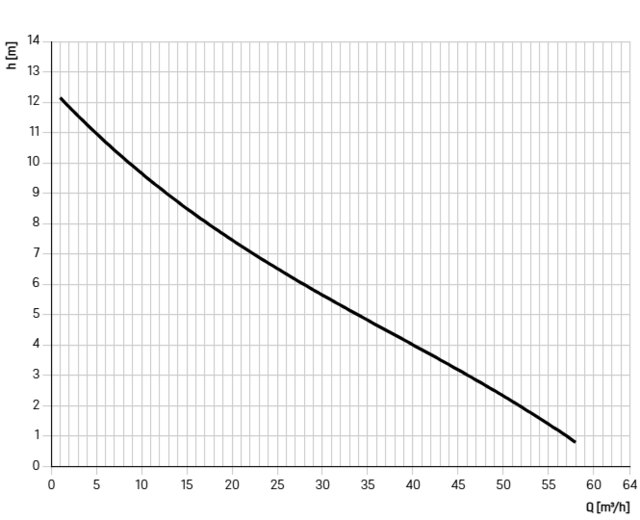

    The unit for an underground installation combines a separator for greasy wastewater incl. sludge trap, a sampling system and a pumping station. The tank of all system parts is made of permanently resistant polymer (PE). The individual system parts can be accessed for cleaning and maintenance work via two inspection covers. A direct disposal pipe socket is available for reduced odour during manual disposal. The pumping station is equipped with two submersible pumps and a backflow preventer. The pumps are actuated via a level sensor. The station is controlled by a user-friendly control unit, which can be connected to the building control system or optionally alarm and collective fault messages can be sent. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20-year polyethylene warranty. Variant Direction of flow: left Chamber system: Cistern Disposal variant: Direct Nominal size (NS): 4 Type of disposal: manual with suction hose General characteristics Installation situation: underground installation Dimensions Groundwater resistant from lower edge of base section: 1800 mm Installation depth: 1130 - 1600 mm Required access area, length: 3210 mm Length: 2690 mm Width: 1670 mm Height of discharge connection: 1310 mm Tank/drain body Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom inlet to tank bottom: 1260 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 Number of inlets: 1 Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 2085 l Max. grease layer thickness: 115 mm Total volume: 2485 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l Pumping device Pump: GTK 1300 Number of pumps: 2 Weight, pump: 27 kg Connection type: Direct connection Protection class: I Insulation class: H Cos phi - power factor: 0,8 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 57 m³/h Max. pumping height: 12,4 m Speed: 2900 U/min Power P1: 1,3 kW Power P2: 1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Single-vane impeller Length of mains cable for pump: 10 m Rated current: 2,5 A Control Alarm sensor: Level sensor Type of level measurement: hydrostatic Connection type: Direct connection Battery buffering: yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 4
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 1,130  mm
    • Direction of flow (fliessrichtung): left
