Grease separator EasyClean ground

Multi, Direct-R, NS 7, T 120 mm, D 400

96007-DR-120D
96007-DR-120D
96007-DR-120D
PDF product data sheet

KESSEL Grease separator EasyClean ground, disposal Direct, nominal size 7, load class D 400, installation depth 845 - 1070 mm, type of disposal manual with suction hose, flow direction right, Cistern

    • Low odour and clean disposal
    • Defined disposal point
    • Complete emptying of the separator
    Item no. 96007-DR-120D
    GTIN 4026092109878
    Price group 60

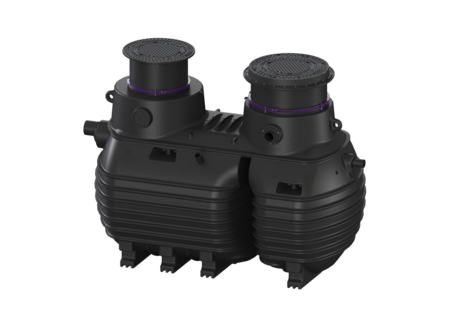

      Grease separator EasyClean ground Multi, Direct-R, NS 7, T 120 mm, D 400

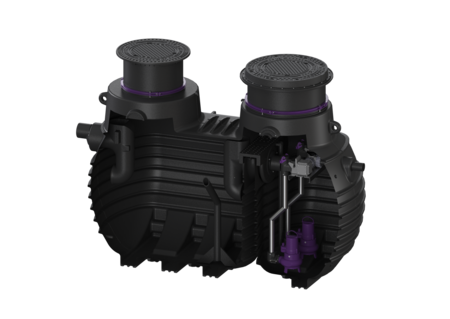

      The unit for an underground installation combines a separator for greasy wastewater incl. sludge trap, a sampling system and a pumping station. The tank of all system parts is made of permanently resistant polymer (PE). The individual system parts can be accessed for cleaning and maintenance work via two inspection covers. A direct disposal pipe socket is available for reduced odour during manual disposal. The pumping station is equipped with two submersible pumps and a backflow preventer. The pumps are actuated via a level sensor. The station is controlled by a user-friendly control unit, which can be connected to the building control system or optionally alarm and collective fault messages can be sent. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20-year polyethylene warranty. Variant Direction of flow: right Chamber system: Cistern Disposal variant: Direct Nominal size (NS): 7 Type of disposal: manual with suction hose Dimensions Groundwater resistant from lower edge of base section: 1800 mm Installation depth: 845 - 1070 mm Required access area, length: 3210 mm Length: 2990 mm Width: 1670 mm Height of discharge connection: 1310 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Distance pipe bottom inlet to tank bottom: 1250 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 Number of inlets: 1 Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: unlocked Load class: D 400 (EN 124) Wastewater contents Separator contents: 1785 l Max. grease layer thickness: 115 mm Total volume: 2485 l Contents of sludge trap: 700 l Storage quantity of grease: 280 l Pumping device Pump: GTK 1300 Weight, pump: 27 kg Connection type: Direct connection Protection class: I Insulation class: H Cos phi - power factor: 0,8 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 57 m³/h Max. pumping height: 12,4 m Speed: 2900 U/min Power P1: 1,3 kW Power P2: 1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Single-vane impeller Length of mains cable for pump: 10 m Rated current: 2,5 A Control Motor protection switch: yes Level measurement instrument: Level sensor Connection type: Direct connection Potential-free contact: yes Log book function: yes Multi-line display: yes
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Nominal size (NS) (nenngroesse): 7
      • Load class (belastungsklasse): D 400 (EN 124)
      • Installation depth (einbautiefe): 845  mm
      • Direction of flow (fliessrichtung): right
